2" round drain for liner pool
ref: 03SU00271 ean13: 8420382012651 sku: 00271

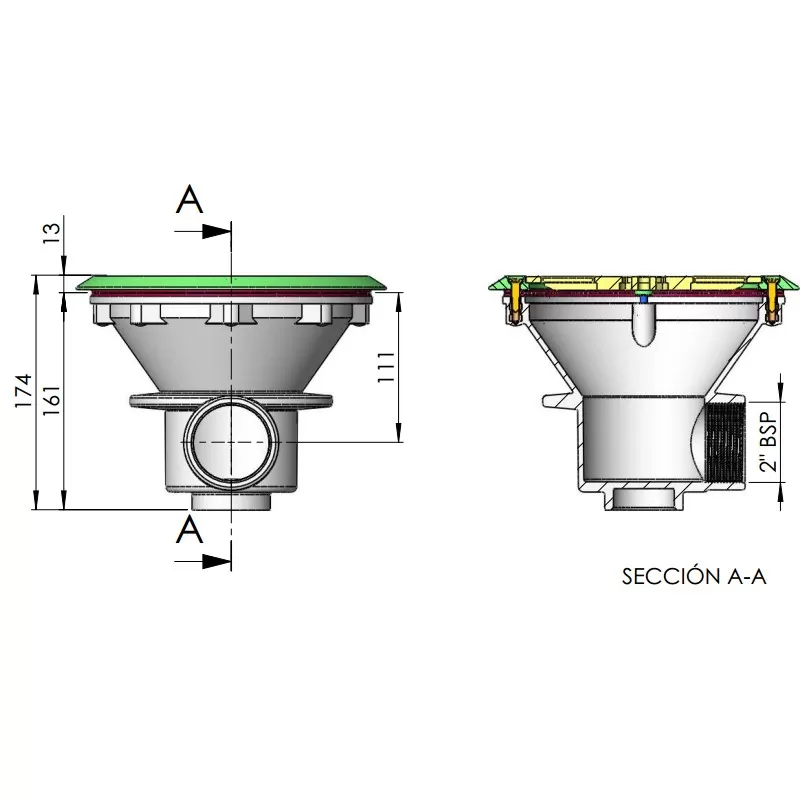

- Circular drain 210 mm Ø with 2" side outlet
- Cod. 00271
- Body and grating made of ABS with adhesive gaskets, flanges and screws
- Maximum recommended flow 11 m3/h
- Suitable for liner and prefabricated pools
€42.89
Free shipping
Technical characteristics
Drain Astralpool 00271
All the drains in the plastic range are supplied with UV treatment on the grille.
- According to UNE 13451-1 Standard, in collective pools, it is necessary:
- 0.5 m/sec flow rate
- Max. suction speed in pipes of 1.5 m/sec
- Minimum distance between drains: >2 m
- We recommend: Use of WARNER safety equipment for vacuum detection and automatic pump shutdown. 2" side outlet. Body and grille in white ABS, with adhesive gaskets, flange and screws. Recommended maximum flow rate 11 m3/h.
Data Sheet
- Coating
- Liner/ Polyester
- Manufactured in
- Plastic
- Type of accessory
- Sump
