Multiflow jetting nozzle for liner pools
ref: 03BO00330 ean13: 8420382012248 sku: 00330
€23.90
Free shipping
Technical characteristics

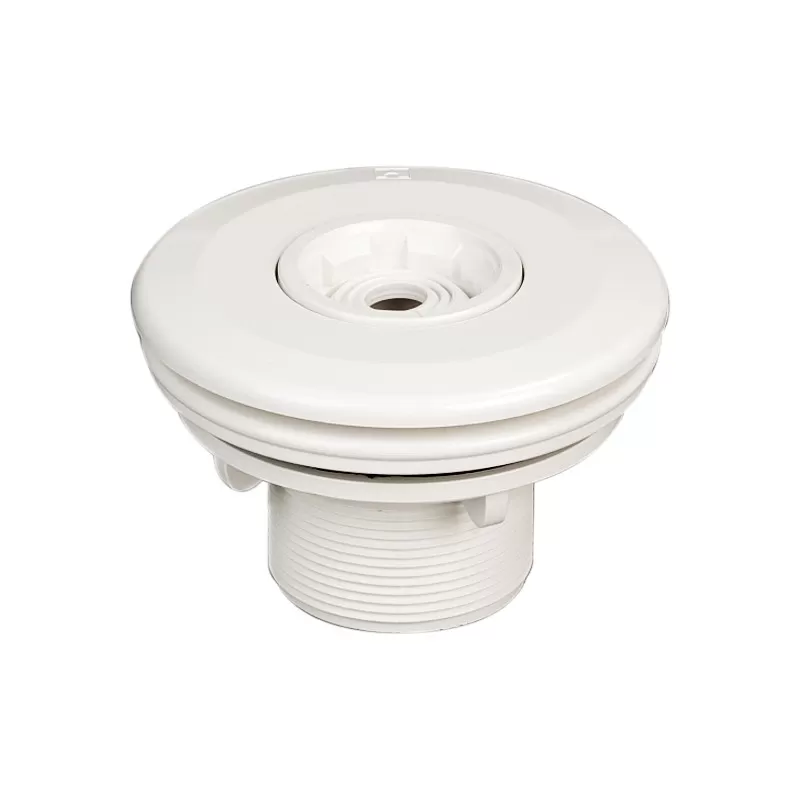

Impulsion Nozzle Astralpool 00330

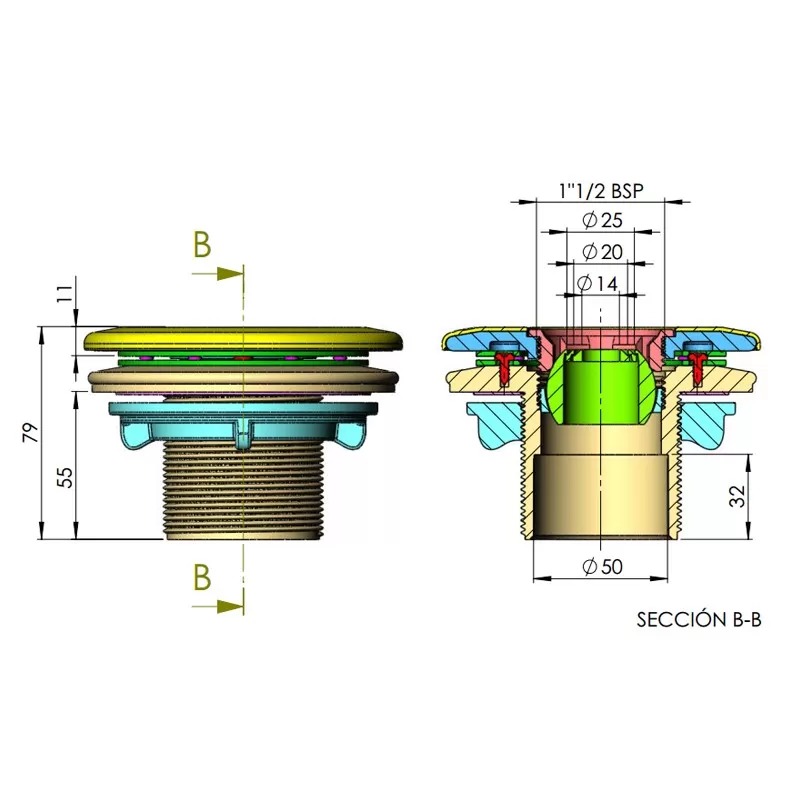

This system consists of the nozzle ball being supplied pre-marked with a range of diameters (14-20 and 25). With the help of a punch (also supplied with the nozzle) one of the diameters can be selected at the time of installation.
Max. recommended flow rate for a max. flow velocity of 4 m/sec. according to UNE 13451-1:
Ø 14= 2,2 m3/h, Ø20 = 4,5 m3/h, Ø25 = 7 m3/h Outer thread 2", inner Ø 50. For liner pools in white ABS, with seals and screws.
Data Sheet
- Coating
- Liner/ Polyester
- Manufactured in
- Plastic
- PN
- 8
- Type of accessory
- Discharge nozzle
