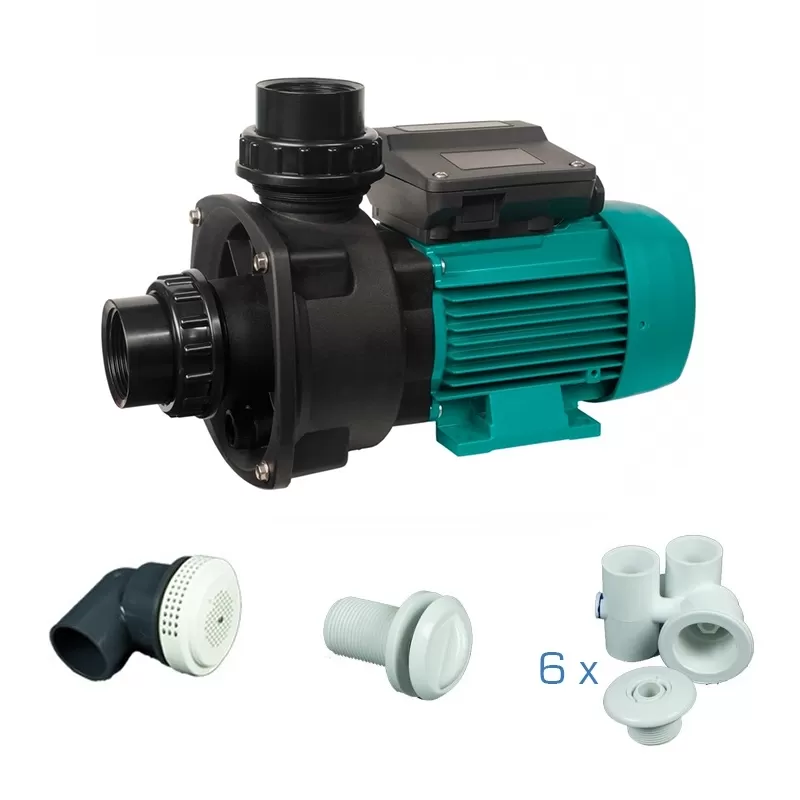

Easy Water Kit for spas

KIT COMPOSED OF:

• 1 ESPA Wiper0 90M pump (1 HP).
• 1 white ABS suction grille.
• 1 white air controllers 1/2".
• 6 white ABS microjet.

ESPA WIPER0 90M PUMP

Electrical characteristics

• Electrical insulation: Class F
• Service factor: S1
• Degree of protection: IP55
• Reset: Automatic
• Motor type: Asynchronous
• Motor rotation type: Constant speed
• Type of service: Continuous

Constructive characteristics

• Intake diameter: D50
• Discharge diameter: D50
• Sealing by: Mechanical seal
• Stages: Single-stage centrifugal pump
• Motor cooling: Fan
• Suction connection type: Push-in fitting
• Type of connection at discharge: Push-in fitting
• Impeller type: Closed

SUCTION GRILLE IN WHITE ABS

• Allows the spa floor to be left clear, enhancing the user experience.
• 2" section with elbow to be glued to Ø50 mm pipe.
• Made of white ABS and PVC.

FLEXIBLE RUBBER PNEUMATIC PUSH BUTTON

what is a pneumatic push button used for?

It is used to start and stop the massage and hydromassage functions in spas, Jacuzzis or removable pools.

how does the pneumatic push button work?

By pressing the pneumatic push button, the air signal is transmitted, which activates a pneumatic switch to start the air pump and thus start the blowing nozzles. If the nozzles are running, pressing the push button again will transmit an air signal to stop the pump and thus stop the blowing nozzles.

1/2" WHITE AIR CONTROLLER

• Specially indicated for whirlpool baths, spas, jacuzzi...
• Controls the amount of air sucked by the jets, thanks to the Venturi effect.

MICROJET ABS WHITE

• Made of white ABS.
• It incorporates an adapter to connect to water impulsion pipe, and Venturi to glue smooth interior of Ø32 mm.
• Adjustable nozzle.
