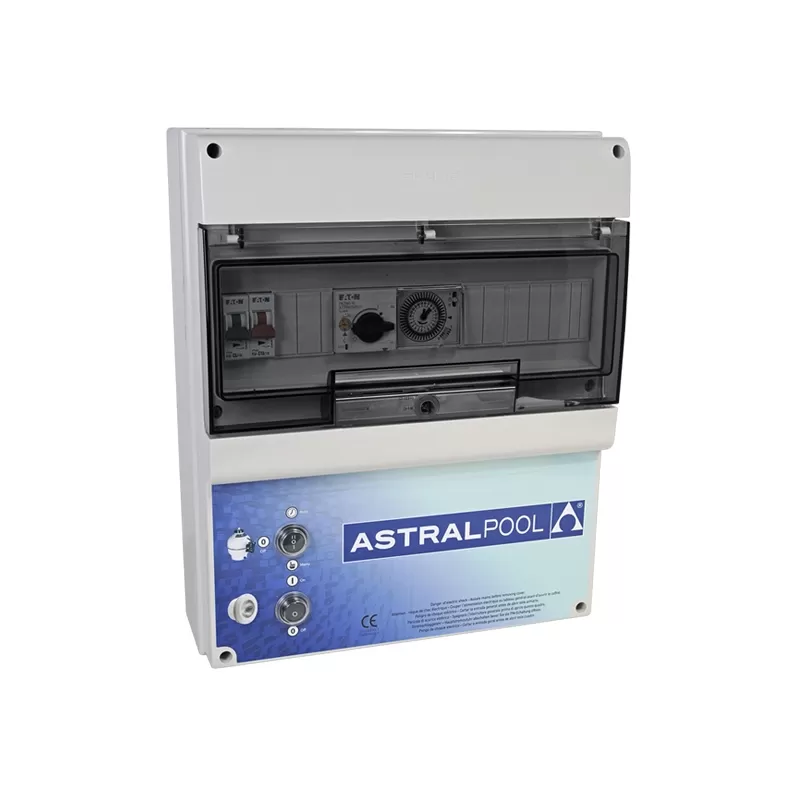

Type D swimming pool control panel with lighting control + 300W transformer

Swimming pool control panel with lighting control + 300 W transformer

Type D pool control panel, for one pump and lighting control.

• Protection by circuit breaker.
• Contactor.
• 24h timer.
• 3 position switch (auto/0/manual).
• Switch for pool lights.
• Transformer included.

Installation and user manual

• The installation of an electrical panel must be carried out by a qualified electrician.
• Never work on a live switchboard. Switch off the power supply to the main switchboard before any work
  .
• Always install the electrical panel out of humidity, rain and water splashes. It must be installed in a technical room or
  at least 3.5 metres from the pool.
• The electrical panel must not be used as a junction box. Never connect external equipment to the electrical panel.
• Adjust the magneto-thermal motor circuit breaker in relation to the actual current consumed by the pump (refer to its nameplate
  ).
• For electrical panels with a 30mA residual current circuit breaker, periodically test the safety device by pressing the
  "test" button.
• Periodically adjust the connections.

TYPE D BOARD:

• Single-phase current (230 v): for pumps of 1.5 HP.
• Three-phase current (400 v): for 4 HP pumps.
