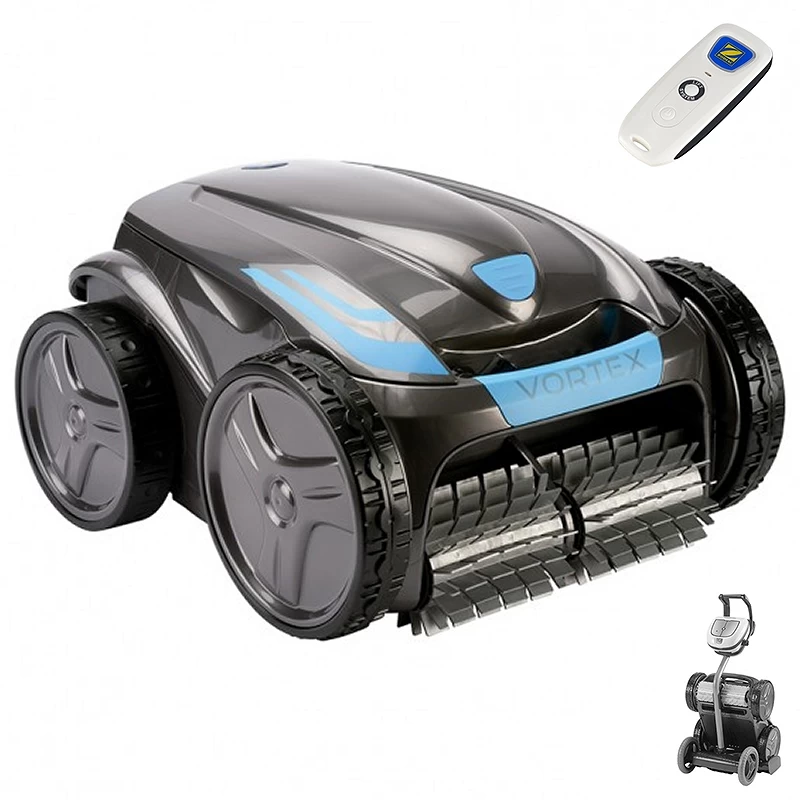

Zodiac Vortex OV 3505 robot pool cleaner
ref: 07LAEWR000152 ean13: 9317545026091 sku: WR000152
- Cleaner Zodiac OV 3505.
- Code: WR000152.
- Cleaning: bottom and walls.
- 6 cleaning cycles.
- Remote control.

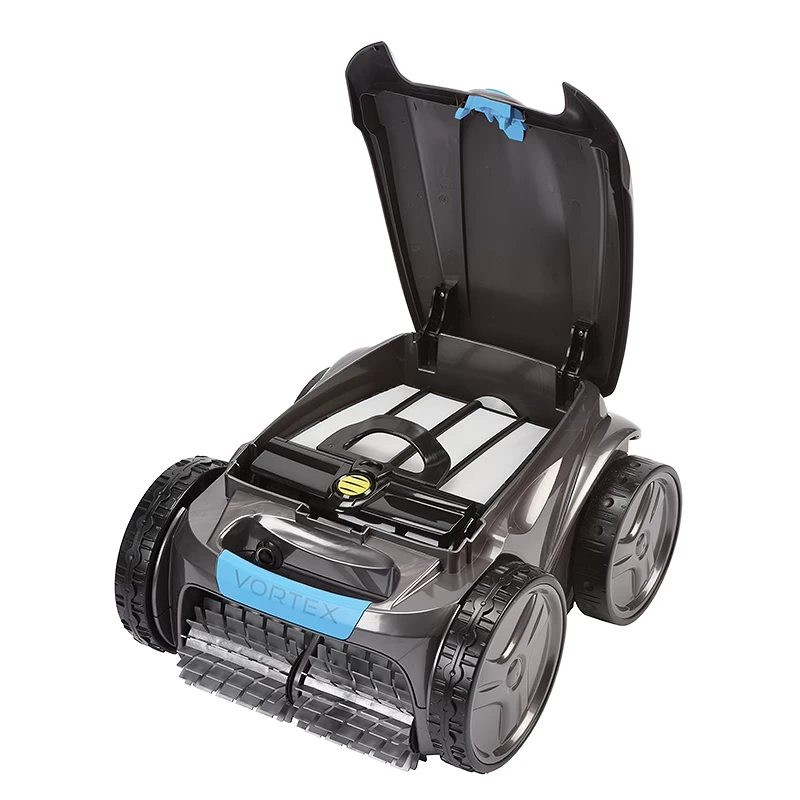

- Rigid filter for easy access and cleaning.
- Weight: 9.5 kg.
- Transport trolley.
€1,099.00
Free shipping
Bought together Usually
Actual product
Items: 1
Total price: €1,099.00
Technical characteristics
* sending a photo of the old robot
For which type of pools is the Zodiac OV 3505?
The bestautomatic pool cleanerWith Zodiac. FromQuimipoolWe want to offer the best selection ofelectric pool cleaners, therefore, we have added the OV 3505 model in our catalogue Zodiac.
Thisrobot pool cleaner ZodiacIs perfect for thepool maintenanceThe unique design of the in-ground pool cleaner allows you to use it regardless of the shape of your pool, thanks to its unique design that allows cleaning of up to 12 x 6 m (40 x 20 ft)rectangular pools, oval,round poolsAnd free forms. For flat bottom, gentle slope, compound slope, diamond point.
Coatings: gresite, liner, polyester shell, reinforced PVC, painted concrete.
DescriptionZodiacOV 3505 electric pool cleaners
- Cleaning areas: bottom, walls, water line.
- Number of cycles: 6 cycles.
- Power supply: Stand-alone 230 V connected.
- Displacement: Pre-programmed.
- Drive system: 2-wheel drive.
- Transmission: Gears.
- Brushes: Yes.
- Lift System: No.
- Filter full indicator: No.
- Remote control: Yes.
- Safety: Beach system, automatic out-of-water stop, electronic engine protection.
- Filter type/access: Rigid filter with access from the top of the cleaner.
Technical characteristics ZodiacOV 3505 pool cleaner
- Number of engines: 3.
- Control system supply voltage: 200-240 VAC; 50 Hz.
- Power supply voltage of the cleaner: 30 VDC.
- Power consumption: 150 W.
- Cable length: 18 m.
- Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
- Weight of cleaner: 9.5 kg.
- Filtering surface / Filtration level: 1180 cm/ 100 microns.
- Filter capacity: 5 L.
- Cleaning coverage: 24.5 cm.
 |  |  |  |  | |
| VORTEX 4 | OV 3400 | OV 3480 | OV 3500 | OV 3505 | |
| FUND | Yes | Yes | Yes | Yes | Yes |
| WALLS | Yes | Yes | Yes | Yes | Yes |
| WATERLINE | Yes | Yes | Yes | Yes | Yes |
| SURFACES | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester | Gresite, concrete, liner, polyester |
| ACTIVE BRUSHES | 2 strikers | 2 strikers | 2 strikers | 2 strikers | 2 strikers |
| FILTRATION SYSTEM | 100 μ | 100 μ | 100 μ | 100 μ | 100 μ |
| FILTER CAPACITY | 5 litres | 5 litres | 5 litres | 5 litres | 5 litres |
| FILTER ACCESS | Top | Top | Top | Top | Top |
| FILTER FULL INDICATOR | No | No | No | No | No |
| CLEANING CYCLES | 5 | 1 | (1 for bottom only and 1 for bottom, walls and waterline) | 6 (3 bottom-only and 3 bottom, walls and waterline) | (3 bottom only and 3 bottom, walls and waterline) |
| DURATION OF THE CYCLE | 1 / 1.5 / 2 / 2.5 / 2.5 / 3.5 hours | 2.5 hours | 1.5 / 2.5 hours | 1 / 1.5 / 2 / 2 / 2.5 / 3 hours | 1 / 1.5 / 2 / 2 / 2.5 / 3.5 hours |
| SWIVEL | No | No | No | No | No |
| LIFT SYSYEM | No | No | No | No | No |
| CABLE LENGTH | 21 metres | 18 metres | 18 metres | 18 metres | 18 metres |
| NO. OF ENGINES | |||||
| REMOTE CONTROL | Yes | No | No | Yes | Yes |
| TRANSPORT TROLLEY | Yes | Yes | Yes | Yes | Yes |
| WEIGHT | 9,5 kg | 9,5 kg | 9,5 kg | 9,5 kg | 9,5 kg |
| MAXIMUM POOL LENGTH | 12 metres | 12 metres | 12 metres | 12 metres | 12 metres |
| SECURITY | Beach system, automatic stop out of the water | Beach system, automatic stop out of the water | Beach system, automatic stop out of the water | Beach system, automatic stop out of the water | Beach system, automatic stop out of the water |
| GUARANTEE | 3 years | 3 years | 3 years | 3 years | 3 years |
