Peristaltic ORP pump Hanna BL101-00 with ORP and Temperature control
ref: 05BDBL101-00 sku: BL101-00
- Redox peristaltic pump 3.5 litres/hour.
- Manufacturer: Hanna.
- Code: BL101-00.
- Supplied with amplified ORP and temperature electrode.
- Adjustable dosing flow.
- Programmable alarm system.
€349.00
Free shipping
Technical characteristics

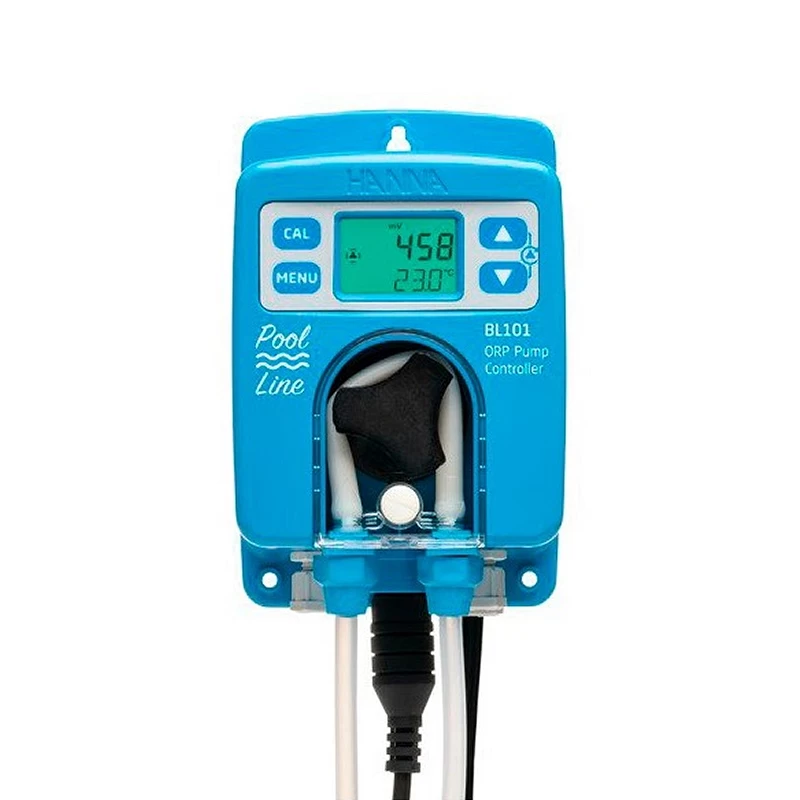

Peristaltic ORP pump with ORP and Temperature control Hanna BL101-00
Ideal for pools, hot tubs and spas. The REDOX BL101 controller and dosing pump is a system designed to maintain the correct pH of pools, hot tubs and spas.
Generally, liquid chlorine is used as a disinfectant to keep the water safe from harmful bacteria. Chlorine, as an oxidant, will increase the oxidation-reduction potential (REDOX) of water when added. When the REDOX value is greater than 650mV, the bacteria present are killed within seconds. The BL101 was developed to be an economical solution to maintain the ideal REDOX value at all times. Simply insert the electrode and injection valve in line with the recirculation pump to dose the chemical

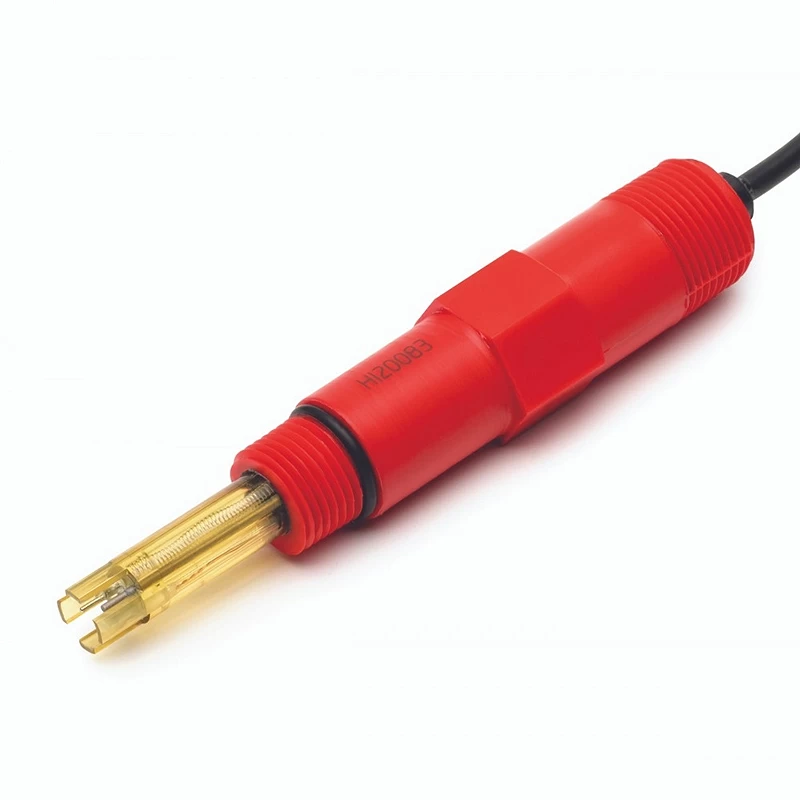

ORP / temperature electrode HI20083
The BL101 uses the HI20083 electrode which incorporates temperature and REDOX sensors and connects to the controller with a single DIN quick connect waterproof connector. The PVDF body of the electrode has a 1/2" threaded fitting for insertion into an in-line "T" fitting or flow cell. The back of the electrode has 3/4" NPT thread for dip/tank mounting. The electrode body has a hex fitting for spanner tightening.
Electrode quick connector
The Quick Connect DIN connector creates a waterproof seal with the meter, making it ideal for reducing potential electrical noise problems at the connection caused by humid environments.
General characteristics
- Peristaltic dosing pump
- Electrode quick connector
- Chemical low level and flow switch
- Automatic pump ON/OFF and proportional pump control
- Adjustable dosing flow rate
- Programmable alarm system
- Multi-colour LCD display
- Amplified pH and temperature electrode
Data Sheet
- Pump type
- Peristaltic
- Pump control
- Digital
- Automatic control of
- Chlorine Redox
