Metering pump Seko PoolDose Double pH/ORP 1.5 l/h with WLAN
ref: 05BDPDPR1H1HAW100 sku: PDPR1H1HAW10
- PoolDose pH/ORP Peristaltic pH/ORP Regulating Metering Pump
- Manufacturer: Seko
- Code: PDPR1H1HAW100
- Flow rate 1.5 l/h at 1.5 bar
- PH measuring range: from 0 to 14
- ORP measuring range: 0 to 1000 mV
- Calibration assisted
- BNC connector with protection
- Included:
- pH probe
- ORP probe
- calibration solutions
- complete installation kit
€699.00
Free shipping
Technical characteristics
Metering pump Seko PoolDose pH/ORP 1.5 l/h with WLAN
The peristaltic dosing pump model POOLDOSE PH/ORP, is the most advanced dosing pump on the market in its sector, compact, simple, complete, ideal for the most demanding customers.
GENERAL TECHNICAL CHARACTERISTICS
- Manufacturer: Seko
- Code: PDPR1H1HAW100
- Dosing proportional to the pH and ORP signals
- 220 to 240 Vac power supply
- IP65 protection
- Measuring range pH: 0 to 14
- ORP measuring range: 0 to 1000 mV
- BNC connector with protection
- Digital LCD display
- Proportional dosing and ON/OFF
- Both acid and alkaline dosing option
- Auxiliary relay and dry contact alarm relay
- Assisted and automatic two-point calibration for pH (pH4 and pH7) and 465 mV for ORP
- Warranty: 3 years
Free SEKOLINK App for remote control via WiFi
Thanks to the SekoLink application it is possible to manage your pool:
- Monitoring with limited management.
- Free application for Smartphones, compatible with Android and iPhone.
- For end users.
A WiFi connection is required to make use of these functionalities.

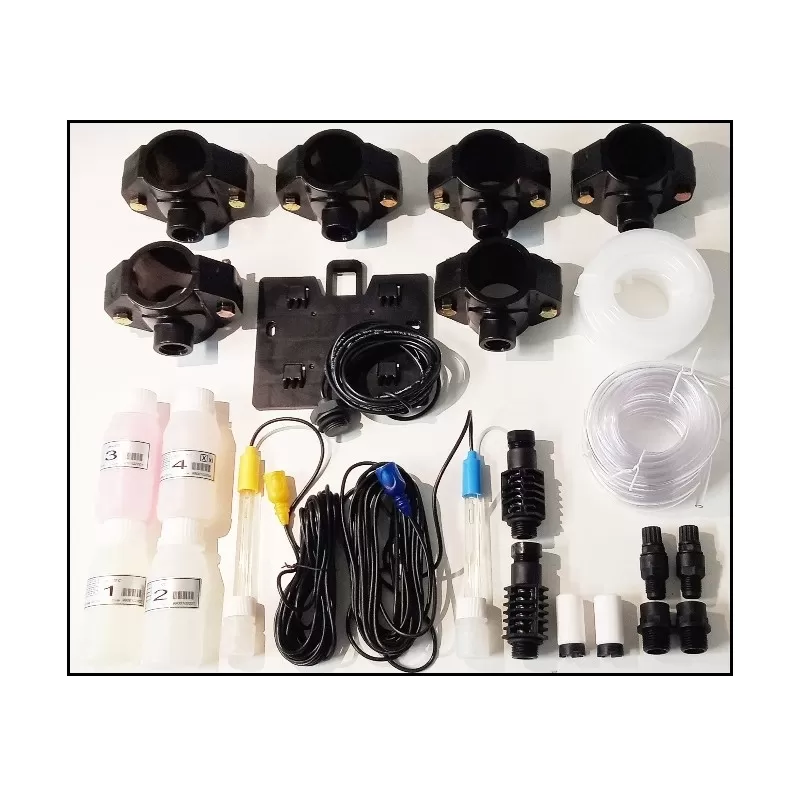

The dosing pump Seko PoolDose pH/ORP includes:
Collar diameter 50 mm
Bottom filter
Bracket with screws
FPM valve (3/8")
Probe holder PSS3 (1/2")
PH probe
ORP probe
Buffer solution pH4
Buffer solution pH7
Buffer solution 465 mV
Injection valve reducer
Temperature probe
4x6 pvc pipe (4 metres)
PE pipe 4x6 (5 metres)
Data Sheet
- Pump type
- Peristaltic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- Chlorine ORP and pH
