Filtro depuradora para piscinas Neptuno 500
Filtro depuradora para piscinas Neptuno 500 Filtro depuradora para piscinas Neptuno 500 Filtro depuradora para piscinas Neptuno 500 Filtro depuradora para piscinas Neptuno 500 Filtro depuradora para piscinas Neptuno 500

Swimming pool filter Neptuno 500

ref: 06FI01099003 ean13: 8410189009763 sku: 540062
  • Neptune Series Pool Filter
  • Manufacturer: Coral
  • Code: 01099003
  • Diameter: 500 mm
  • Material: high density injected polypropylene
  • Transparent cover with thread
  • INCLUDES 6-WAY SELECTOR VALVE 1" 1/2.
  • Easy to view pressure gauge
€259.00
Free shipping
Free Shipping + info

Technical characteristics

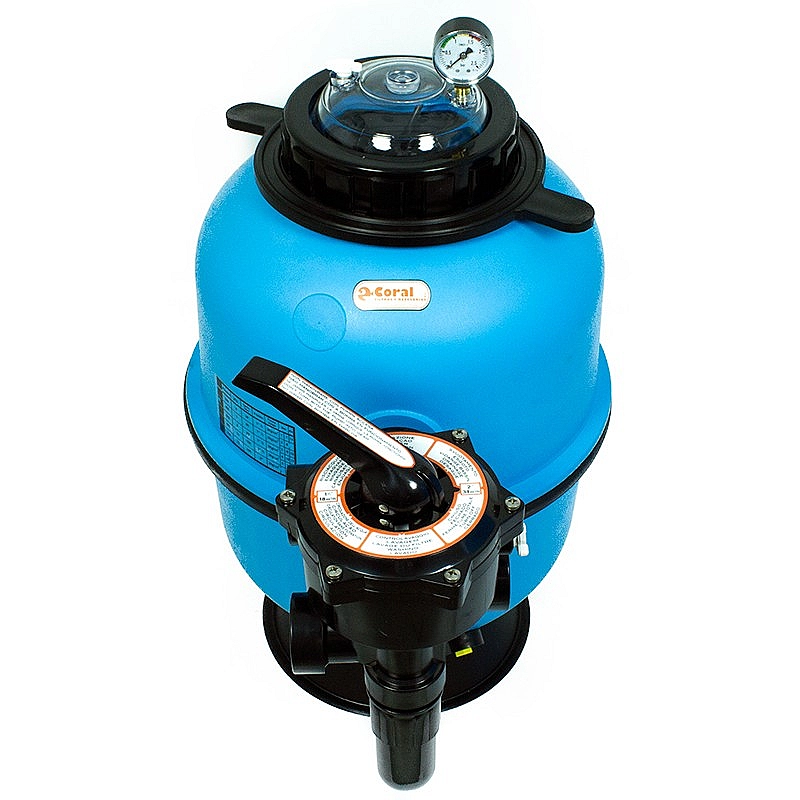

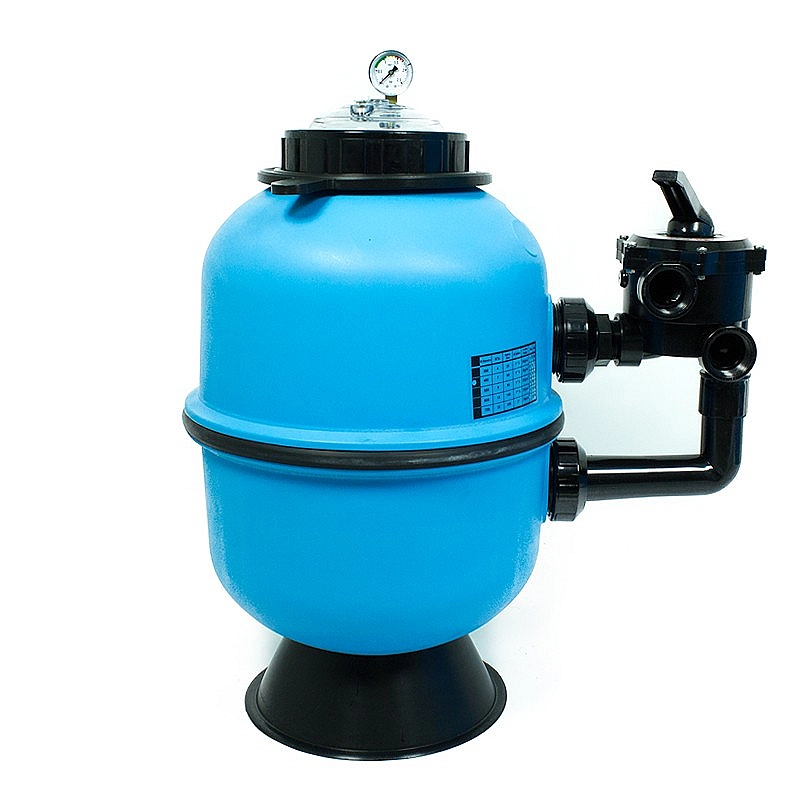

Swimming pool filter Coral Neptuno 500

The Neptuno filter is injected in high-density polypropylene for greater resistance over time.

It includes all the elements for the correct functioning of the filtration system.

MAIN CHARACTERISTICS

  • Diameter: 500 mm
  • Filtration capacity: 9.000 l/h
  • Filtration speed: 50 m3/h
  • Maximum working pressure: 2.5 kg/cm2
  • Sand load: 85 kg
  • Glass load: 77 kg

Screw-on top cover

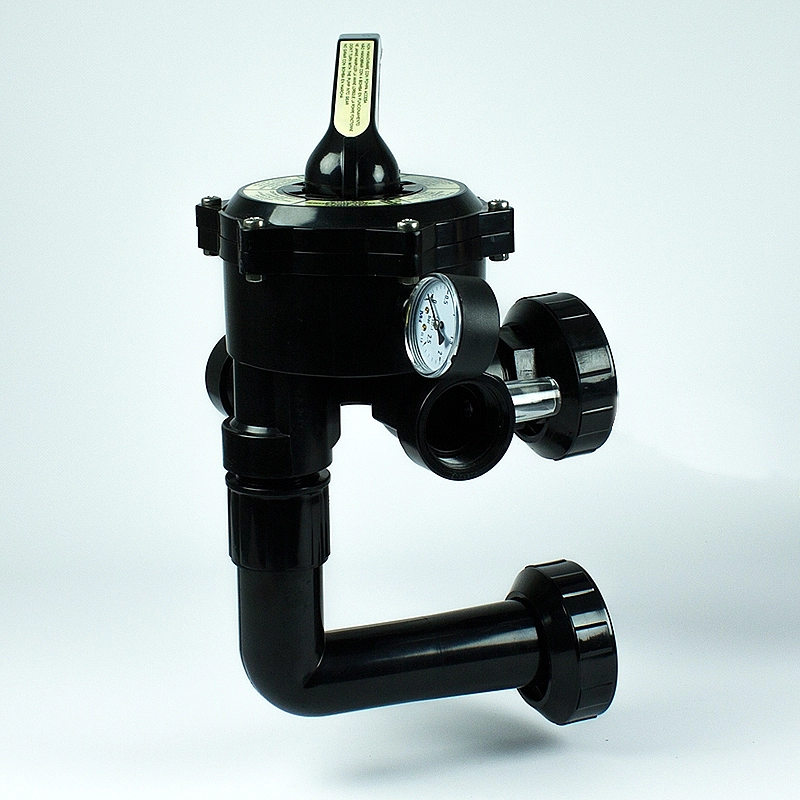

6-way selector valve 1" 1/2

Pressure gauge

Product manufactured at España

what is leakage?

Filtration is one of the most important tasks when cleaning and disinfecting our pool.

Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.

When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.

In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.

Commissioning

Once the sand filter has been filled (see manual), proceed as follows:

1. Open the valves on the suction pipes leading to the pool (skimmer and drain).

2. Turn the selector valve to the RINSE position.

3. Switch on the pump for 5 minutes.

4. Stop the pump and switch the selector valve to the RINSE position.

5. Reconnect the pump for 1 minute.

6. Stop the pump and switch the selector valve to the FILTRATION position.

The filter is now ready for operation.

Functions of the selector valve

Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300
NEPTUNE 300 NEPTUNE 400 NEPTUNE 500 NEPTUNE 600
Diameter (mm) 300 400 500 600
Height (mm) 535 635 725 855
Connections 1" 1/2 1" 1/2 1" 1/2 1" 1/2
Flow rate (m3/h) 4 7 10 14
Sand load (kg) 30 60 100 150
Filtration surface (m2) 0,10 0,14 0,20 0,28
GUARANTEE 2 years 2 years 2 years 2 years

Data Sheet

Recommended pool size
20-50 m3
Filter diameter
500 mm
For pumps
0.5 HP
Valve
1 1/2" side
Sand load (kg)
50 - 100 kg
Material
Injected plastic
Type of filtration
Sand
