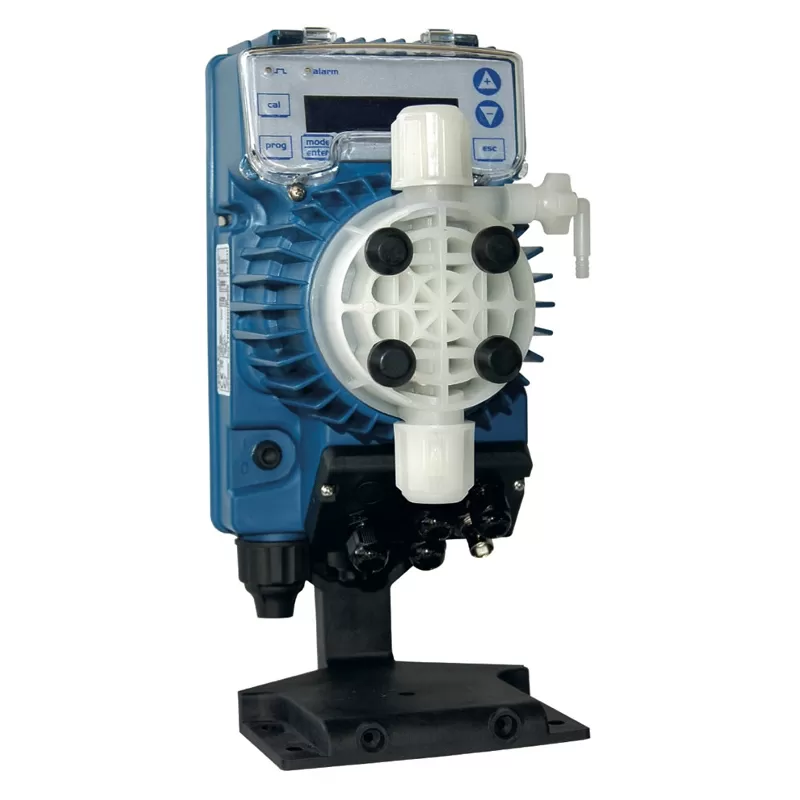

Metering pump Seko Tekna Evo TPG 603 (PVDF-T kit)

Dosing pump Seko

Metering pumps are a type of pump whose task is to inject a liquid (in swimming pools it is normal to inject a liquid reducing agent, ph increaser or liquid chlorine) into a fluid line. There are two types of dosing pumps: peristaltic pumps and diaphragm pumps. There are also models that allow you to control the parameter of the product you are dosing, i.e. control the pH level or control the chlorine level

Technical characteristics of the TEKNA EVO TPG 603 dosing pump.

• Two operating frequencies (0-20% and 0-100%), with led indicator
• Manual purge valve
• Housing made of glass-fibre reinforced PP (polypropylene), protection IP65

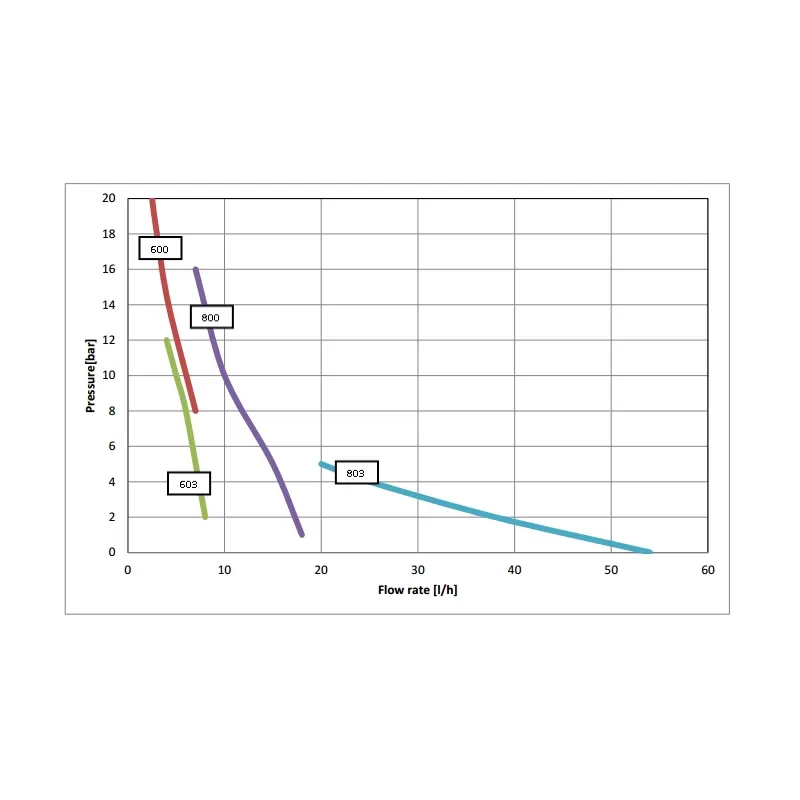

• Constant flow rate up to 8 l/h ( see table)
• Manually adjustable digital control or dosing proportional to an external signal
• Head (body and connection) made of PVDF
• PTFE membrane
• PVDF-T installation kit (injection valve, foot filter and bracket)
• PVC suction pipe
• PE delivery pipe
• Viton seals

Contents of the box:

• Dosing pump Seko TPG 603
• Standard power supply 100-240Vac, 50/60Hz
• Installation kit
