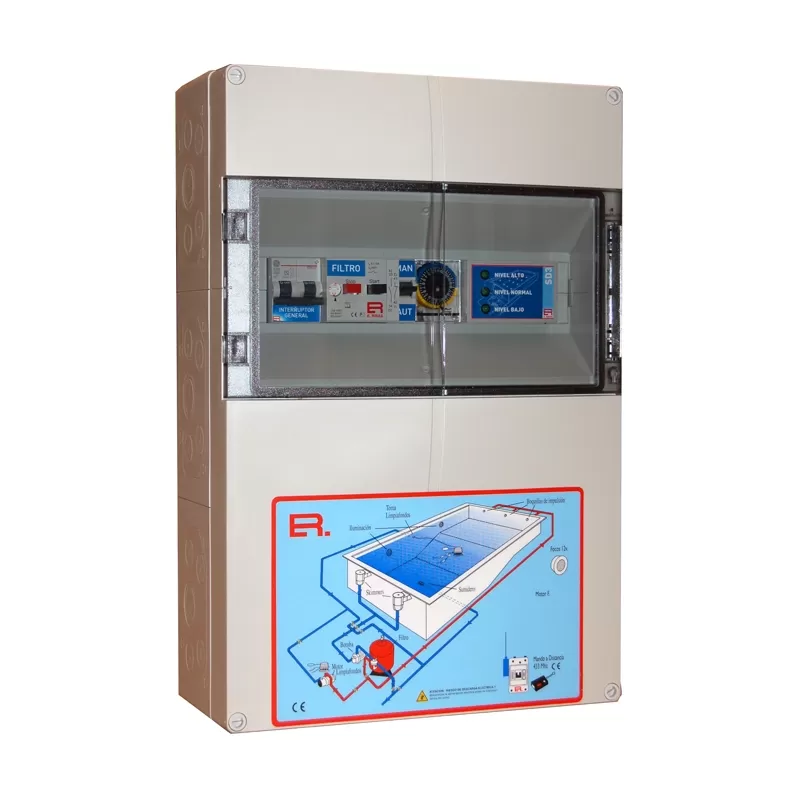

Overflowing level swimming pool control cabinet

Overflow level pool control cabinet

Electrical panels with IP65/66 watertight cabinets for the automatic control of overflowing pools. Electronic protection and control of filtration pumps and filling solenoid valves.

Equipped with general magneto-thermal protection, timer, manual-stop-automatic selector, motor protection and 24V solenoid valve control.

Control cabinet components:

• General magneto-thermal protection.
• Clock timer.
• Manual-stop-automatic selector.
• Protective circuit breaker.
• Control for 24 V solenoid valve.
• SD3 or SD4 unit with stainless steel probes: Controls the correct operation of the overflowing pool and its compensation tank. By using level probes as sensors, it prevents the loss of large quantities of water and at the same time ensures the correct level. This equipment works with 4 level sensors: common, minimum, normal and maximum. Outputs 1 and 2 are switched on depending on the status of the probes. The common probe must always be in contact with the water.
