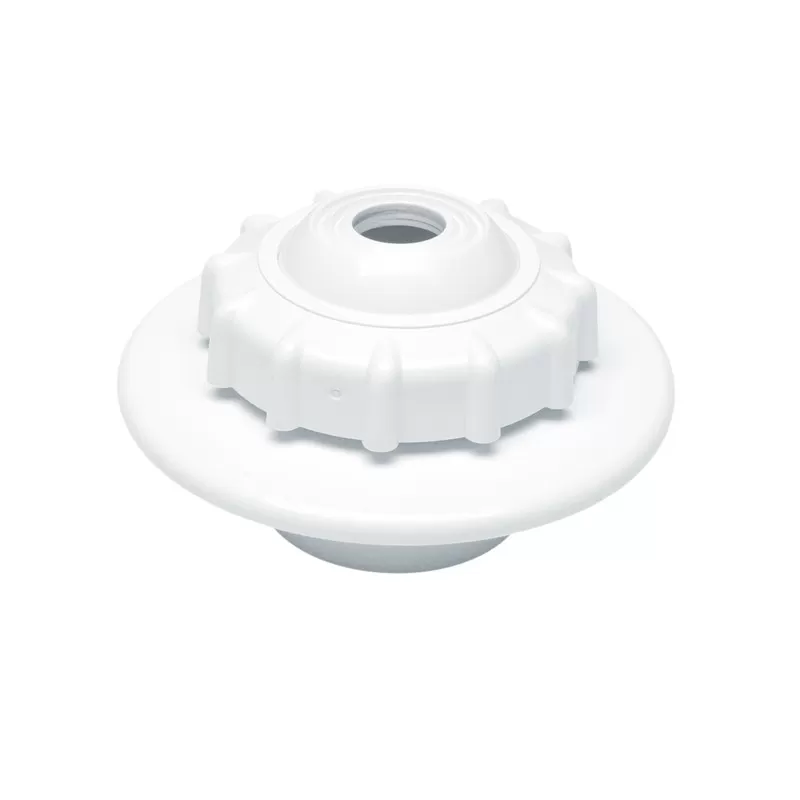

Multiflow Discharge Nozzle d.50 PN.8
ref: 03BO00289 ean13: 8420382011876 sku: 00289
- To be glued inside Ø 50 mm PN 8 pipe.
- Made of white ABS.
- They incorporate the "Multiflow" system, which allows you to choose the diameter and therefore the flow rate of water that will pass through the nozzles.
€4.95
Free shipping
Technical characteristics
Pressure nozzle Astralpool 00289

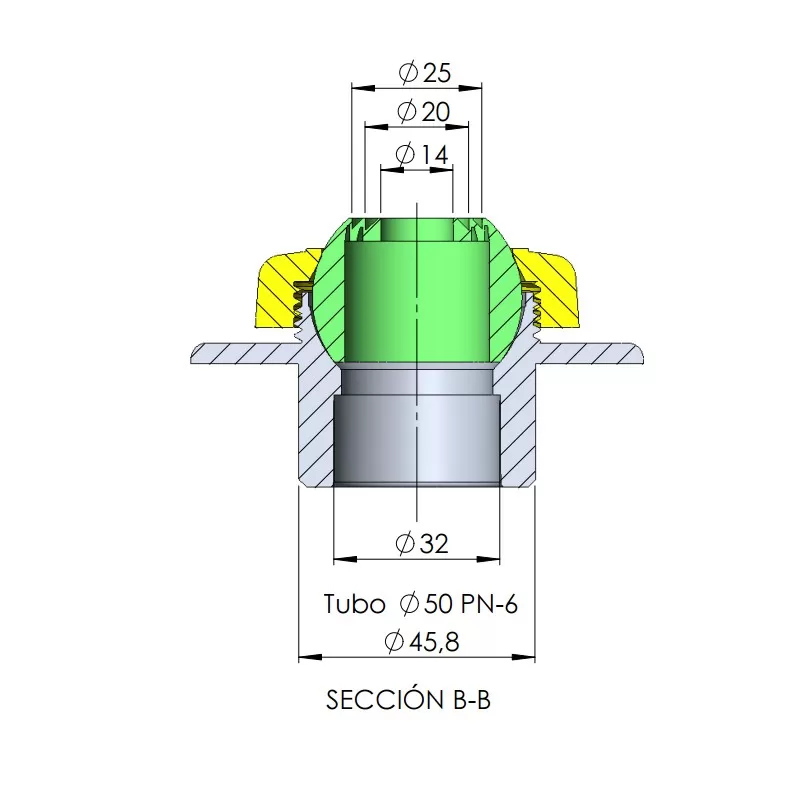

To be glued to the inside of a Ø 50 mm PN 8 pipe. Made of white ABS, they incorporate the "Multiflow" system, which allows you to choose the diameter and therefore the water flow rate that will pass through the nozzles.
Maximum flow recommended for a maximum flow rate of 4 m/sec, according to UNE 13451-1 standard:
- Ø 14= 2,2 m3/h.
- Ø20 = 4,5 m3/h.
- Ø25 = 7 m3/h.
Data Sheet
- Coating
- Concrete
- Manufactured in
- Plastic
- PN
- 8
- Type of accessory
- Discharge nozzle
