Pro water kit for spas
ref: 14SSPROWATER

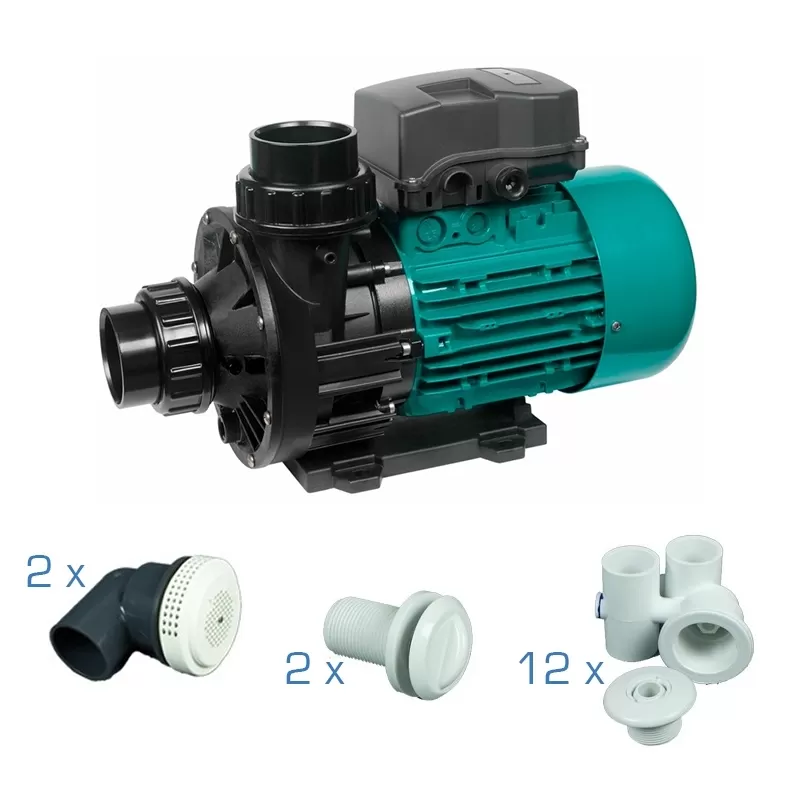

- Water kit for on-site spas.
- Composed by:
- 1 pump ESPA Wiper3 200M single-phase (2 CV)
- 2 suction grids
- 2 white air controllers 1/2"
- 12 white ABS microjet white
Quimipool is not responsible for the correct operation, since it neither designs nor supervises the installation. The installer is ultimately responsible, Quimipool only offers a recommendation.
€719.00
Free shipping
Bought together Usually
Actual product
Items: 1
Total price: €719.00
Technical characteristics
KIT COMPOSED OF:
- 1 ESPA Wiper3 200M single-phase pump (2 HP).
- 2 white ABS suction grids.
- 2 white air controllers 1/2".
- 12 white ABS microjet.
Description Pool pump Espa Wiper3 200M
Equipment
- Foot / Base: Included
- Racors: Glue
- Purge plug: No
- Check valve: No
- Electrical Characteristics
- Electrical Insulation: Class F
- Service factor: S1
- Degree of protection: IP55
- Reset: Automatic
- Motor type: Asynchronous
- Motor rotation type: Constant speed
- Type of service: Continuous
- Constructive characteristics
- Intake diameter: D63
- Discharge diameter: D63
- Sealing by: Mechanical seal
- Stages: Single-stage centrifugal pump
- Motor cooling: Fan
- Suction connection type: Push-in fitting
- Type of connection at discharge: Push-in fitting
- Impeller type: Closed
Materials
- Mechanical seal: Graphite-Steatite
- Suction body: PPO + 30% GF
- Discharge casing: PP + 30% GF
- Pump shaft: AISI 431
- Motor shaft: Stainless steel AISI 431
- Motor casing: Aluminum
- Impeller(s): PPO + 30% GF
- Seals: NBR
- Base-foot material: PPO + 30% GF
- Stamp material: PP + 30% GF
- Screws: Stainless steel AISI 304
SUCTION GRILLE IN WHITE ABS
- Allows to leave the spa floor free, improving the user experience.
- 2" section with elbow to be glued to Ø50 mm pipe.
- Made of white ABS and PVC.
FLEXIBLE RUBBER PNEUMATIC PUSH BUTTON
what is a pneumatic push button used for?
It is used to start and stop the massage and hydromassage functions in spas, Jacuzzis or removable pools.
how does the pneumatic push button work?
By pressing the pneumatic push button, the air signal is transmitted, which activates a pneumatic switch to start the air pump and thus start the blowing nozzles. If the nozzles are running, pressing the push button again will transmit an air signal to stop the pump and thus stop the blowing nozzles.
1/2" WHITE AIR CONTROLLER
- Specially indicated for whirlpool baths, spas, jacuzzi...
- Controls the amount of air sucked by the jets, thanks to the Venturi effect.
MICROJET ABS WHITE
- Made of white ABS.
- It incorporates an adapter to connect to water impulsion pipe, and Venturi to glue smooth interior of Ø32 mm.
- Adjustable nozzle.
