Swimming pool pump Hayward Starpump II Powerline Plus 0,75 HP Single Phase
ref: 05BO500764 ean13: 610377390859 sku: 500894
- Swimming pool pump Hayward Starpump II Powerline Plus
- Power: 3/4 HP
- Manufacturer: Hayward
- Single phase
- Low noise level and low power consumption
- Valid to replace the following models:
- Hayward Powerline Plus
- Hayward Max-Flo
€255.00
Free shipping
Technical characteristics

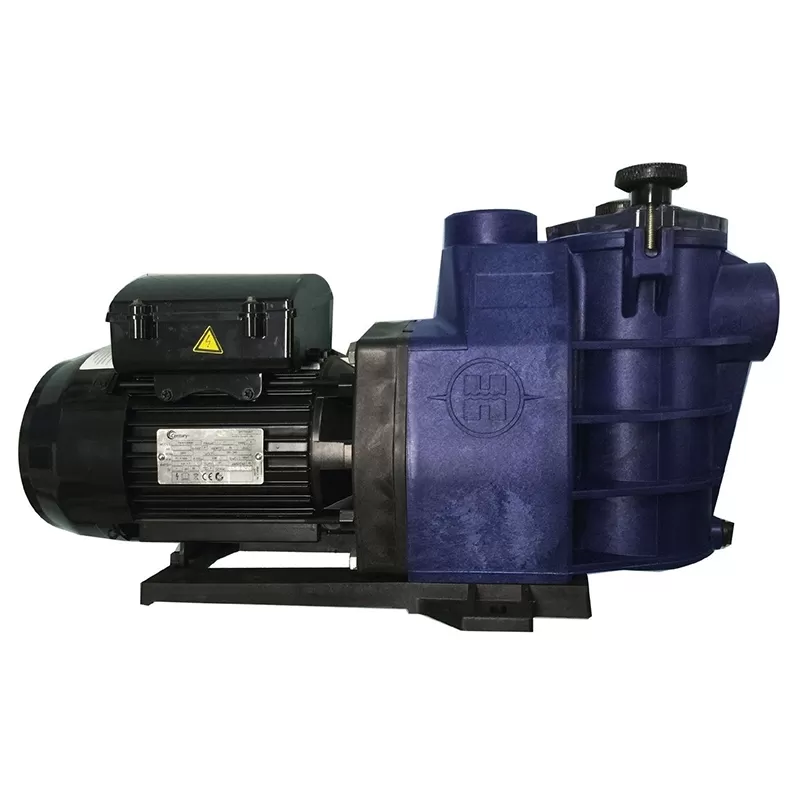

Swimming pool pump Hayward Starpump II 0.75 hp single phase
This model from Hayward combines compact design and durable materials for superb performance and exceptional longevity.
- Power: 0.75 hp
- Current: single phase
- 1 litre pre-filter basket
- Flow rate: 11 m3/h
MULTI-PURPOSE
- Ideal for small to medium sized pools.
- Compact design.
RESISTANT AND EFFICIENT
- Self-priming pump with enclosed and ventilated motor (IPX5).
- High efficiency Noryl turbine with brass insert.
- Built-in thermal protection with automatic reactivation.
- Thermoplastic resin body resistant to chemical and salt corrosion.
- Ceramic on carbon obturator.
NOTE: This model is valid to replace the HAYWARD POWERLINE PLUS or HAYWARD MAX-FLO pump. They share the same dimensions, so they are interchangeable without the need to make any modifications to the installation.
1" 1/2 (50 mm) outlet.
Draining plugs for easy winterisation.

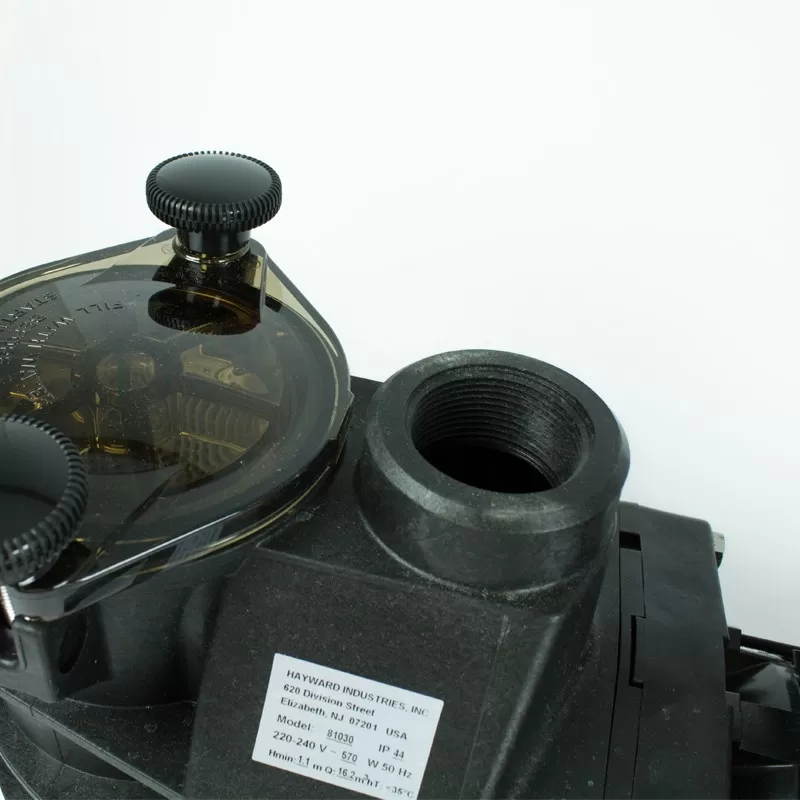

Transparent pre-filter cover.
STARTING AND PRIMING INSTRUCTIONS
1. Fill the filter housing with water up to the level of the suction pipe. Never start the pump without water, as this water is necessary for cooling and lubricating the mechanical seal.
2. Open all suction and delivery valves, as well as the air vent on the filter, if fitted. Any air in the suction line needs to be vented so that it can be evacuated.
3. Start the unit and wait for priming for a certain period of time. Five minutes is not an excessive time for priming (priming depends on the suction lift and the horizontal length of the suction pipe). If the pump does not start or does not prime, see possible faults and solutions.
MAINTENANCE
1. Clean the pre-filter basket regularly; do not knock on it when cleaning. Check the seal of the pre-filter cover and replace it if necessary.
2. The motor shaft is mounted on self-lubricating bearings which do not require further lubrication.
3. Keep the motor clean and dry, and make sure that the ventilation openings are free of any obstruction.
4. Occasionally the mechanical seal may leak and must be replaced.
5. Except for cleaning activities, repairs, overhauls and maintenance must be carried out by an authorised technician of Hayward or a similarly qualified person
| STARPUMP POWERLINE PLUS 0,5 HP | STARPUMP POWERLINE PLUS 0,75 HP | STARPUMP POWERLINE PLUS 1 HP | STARPUMP POWERLINE PLUS 1,5 HP | |
| FLOW RATE | 8 m3/h | 11 m3/h | 13 m3/h | 15 m3/h |

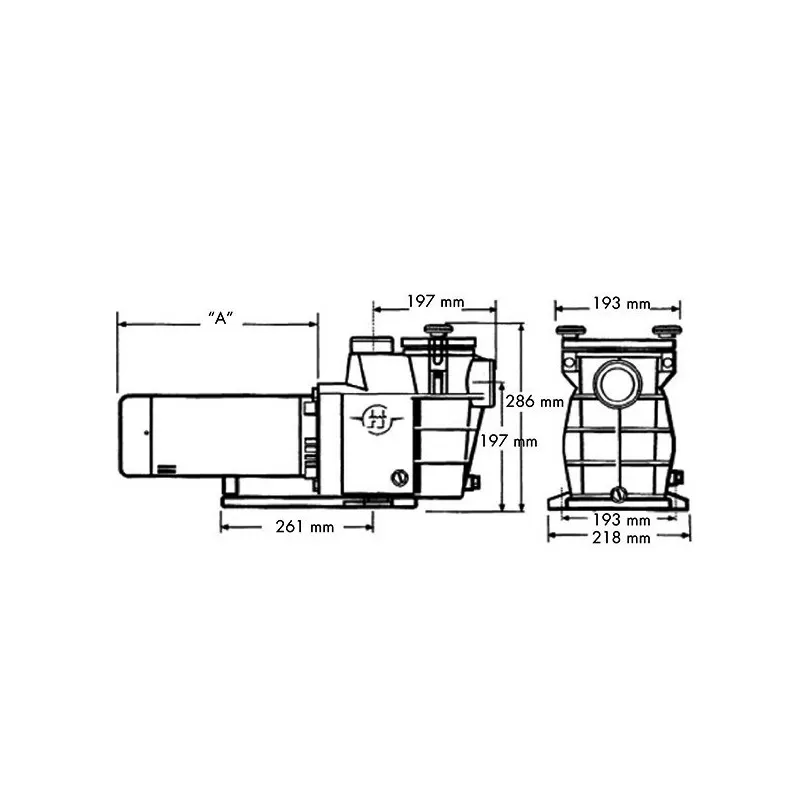

| HEIGHT | 286 mm | 286 mm | 286 mm | 286 mm |
| OUTLET | 50 mm | 50 mm | 50 mm | 50 mm |
| WEIGHT | 14 kg | 14 kg | 15 kg | 15 kg |
| POWER CONSUMPTION P1 | 870 W | 870 W | 975 W | 1100 W |
| POWER OUTPUT P2 | 590 W | 590 W | 720 W | 1160 W |
| AMPERAGE | 2,9 A | 3,6 A | 4,3 A | 5 A |
Data Sheet
- Type of current
- Single-phase 220V
- For Filters
- 500mm-600mm
- Brand
- Hayward
- Flow rate m3/h (at 10 mca)
- 11 - 15 m3/h
- Variable Speed
- No
- Power (hp)
- 0.75 HP
