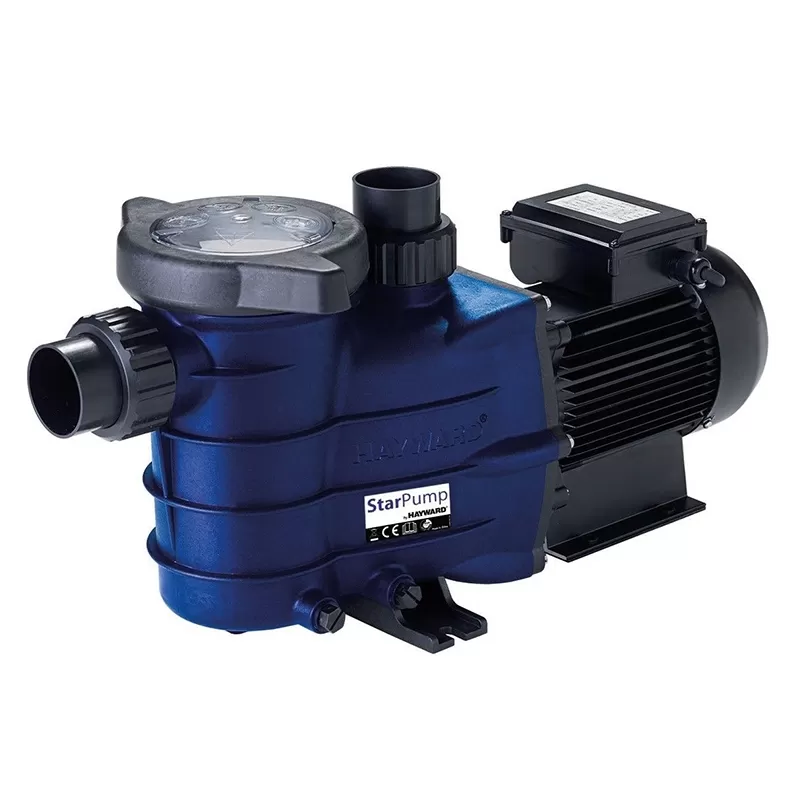

Swimming pool pump Hayward Starpump Powerline 0,75 HP Single Phase
ref: 05BO500667 ean13: 8410189044955 sku: 500677
- Swimming pool pump Hayward Starpump Powerline
- Power: 3/4 HP
- Manufacturer: Hayward
- Single-phase
- Flow rate: 13 m3/h
- 1.1 litre pre-filter basket
- Valid to replace the following models:
- Hayward Powerline
- Hayward Power-Flo II
€209.00
Free shipping
Technical characteristics
Swimming pool pump Hayward Starpump 0.75 hp single phase
This small sized pump is ideal for small pools, above ground pools and in-ground and tiny rooms.
- Power: 0.75 hp
- Current: single phase
- 1.1 litre pre-filter basket
- Flow rate: 13 m3/h
MULTI-PURPOSE
- To be glued to Ø50 mm or with adapters for Ø32/38 mm pipes
RESULTS
- Self-priming pump with closed and ventilated motor (IPX5)
- Quiet running
- High performance and resistance to chemical and salt corrosion
NOTE: This model is valid to replace the HAYWARD POWERLINE or HAYWARD POWER-FLO II pump. They share the same dimensions, so they are interchangeable without the need to make any modifications to the installation.
Easy access filter thanks to the twist lock lid (quarter turn opening).
Draining plugs for easy winterisation.
Outlet to Ø50 mm or with adapters for Ø32/38 mm pipes.
STARTING AND PRIMING INSTRUCTIONS
1. Fill the filter housing with water up to the level of the suction pipe. Never start the pump without water, as this water is necessary for cooling and lubricating the mechanical seal.
2. Open all suction and delivery valves, as well as the air vent on the filter, if fitted. Any air in the suction line needs to be vented so that it can be evacuated.
3. Start the unit and wait for priming for a certain period of time. Five minutes is not an excessive time for priming (priming depends on the suction lift and the horizontal length of the suction pipe). If the pump does not start or does not prime, see possible faults and solutions.
MAINTENANCE
1. Clean the pre-filter basket regularly; do not knock on it when cleaning. Check the seal of the pre-filter cover and replace it if necessary.
2. The motor shaft is mounted on self-lubricating bearings which do not require further lubrication.
3. Keep the motor clean and dry, and make sure that the ventilation openings are free of any obstruction.
4. Occasionally the mechanical seal may leak and must be replaced.
5. Except for cleaning activities, repairs, overhauls and maintenance must be carried out by an authorised technician of Hayward or a similarly qualified person

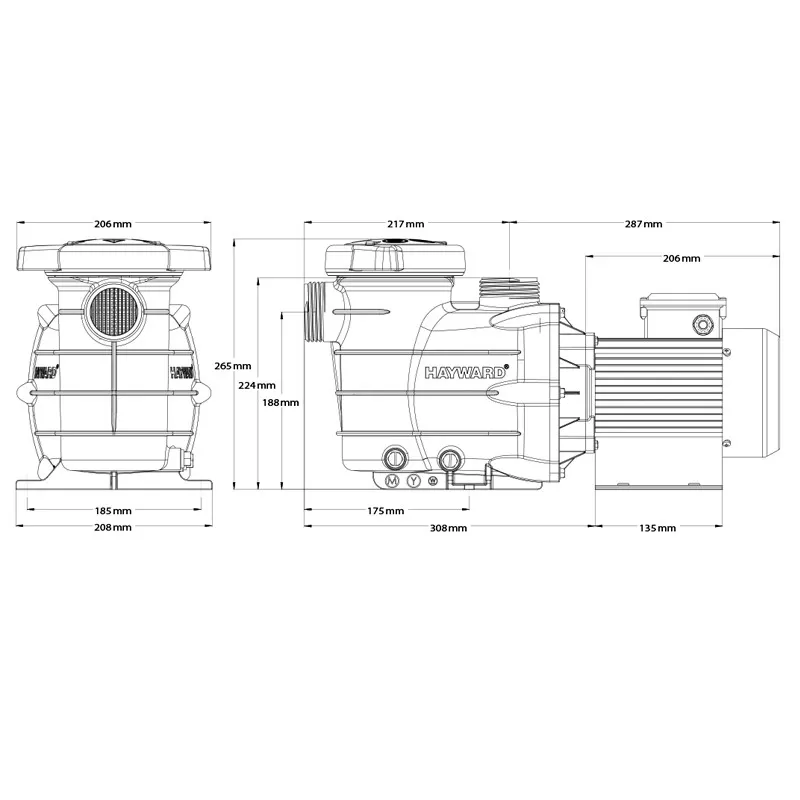

| STARPUMP POWERLINE 0,5 HP | STARPUMP POWERLINE 0,75 HP | STARPUMP POWERLINE 1 HP | |
| FLOW RATE | 10,8 m3/h | 13 m3/h | 15 m3/h |
| HEIGHT | 265 mm | 265 mm | 265 mm |
| OUTLET | 50 mm | 50 mm | 50 mm |
| WEIGHT | 8,65 kg | 9,16 kg | 9,16 kg |
| POWER CONSUMPTION P1 | 610 W | 790 W | 920 W |
| OUTPUT POWER P2 | 560 W | 610 W | 730 W |
| AMPERAGE | 2,6 A | 3,4 A | 4,0 A |
Data Sheet
- Type of current
- Single-phase 220V
- For Filters
- 500mm-600mm
- Brand
- Hayward
- Flow rate m3/h (at 10 mca)
- 11 - 15 m3/h
- Variable Speed
- No
- Power (hp)
- 0.75 HP
