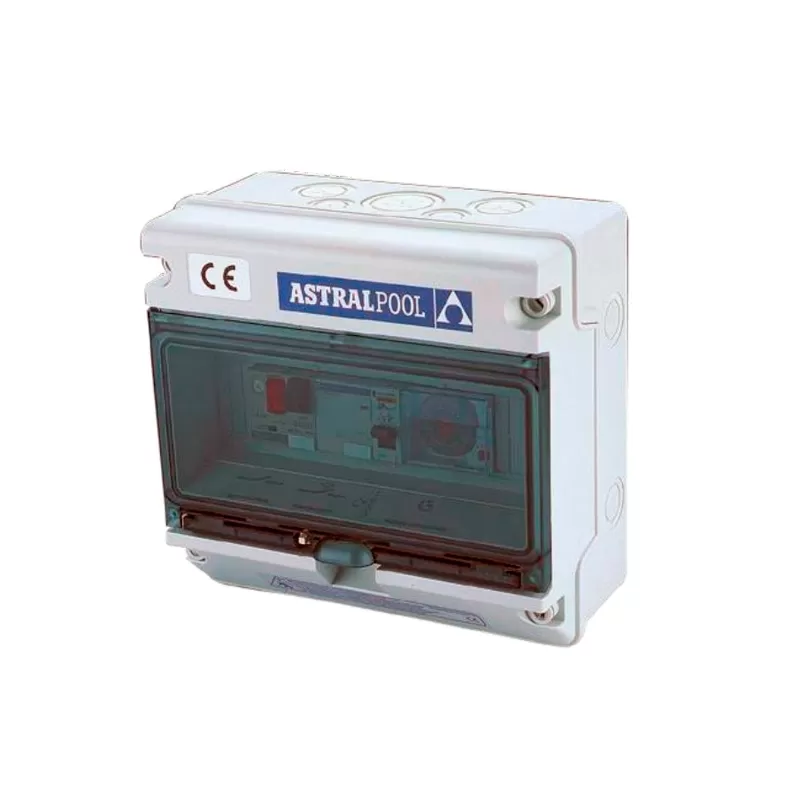

Swimming pool control panel for 1 pump 3/4-1 HP with contactor
ref: 04AR25719 ean13: 8420382637274 sku: 25719
- Control panel for filtration pump from 3/4 to 1 CV
- IP65 watertight cabinet
- Compatible with 230 V and 380 V
- Composed of: Protection by circuit breaker, automatic/stop/manual switch, circuit breaker, timer, contactor
- Easy and simple to install and program with wiring diagram
€175.00
Free shipping
Technical characteristics
what type of pool is this panel suitable for?
- For pools with a ¾-1 HP pump
- Allows you to set it in manual, off or automatic mode
- Clock timer
Features 25719 panel:
IP-65 protection. Transparent glass with lock and key. All products are compatible with:
- 220/240V 1-phase (P+N+T) 50Hz/60Hz
- 380/415V 3-phase (3P+N+T) 50Hz/60Hz
- 220/230V 3-phase (3P+T) 50Hz/60Hz
24H control clock with programming steps every ¼h. Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...). All products are delivered with:
- wiring diagram
- Connection diagram
- installation instructions
- CE conformity certificate
- cable gland for each cable entry and exit
- Screws and plugs (4) for wall mounting.
Electrical components of the panel:
Circuit breaker protection (1.6 to 10A) contactor, 24 h programming clock. 3 positions: Auto / 0 / manual. 12V 315VA.
Informative note:
Depending on the nominal current of the filtration pump, the type of cabinet must be selected
Data Sheet
- Type of current
- Single-phase 220V
- For pumps
- 0.75 HP - 1 HP
- Lighting control
- No
- Transformer
- Without transformer
