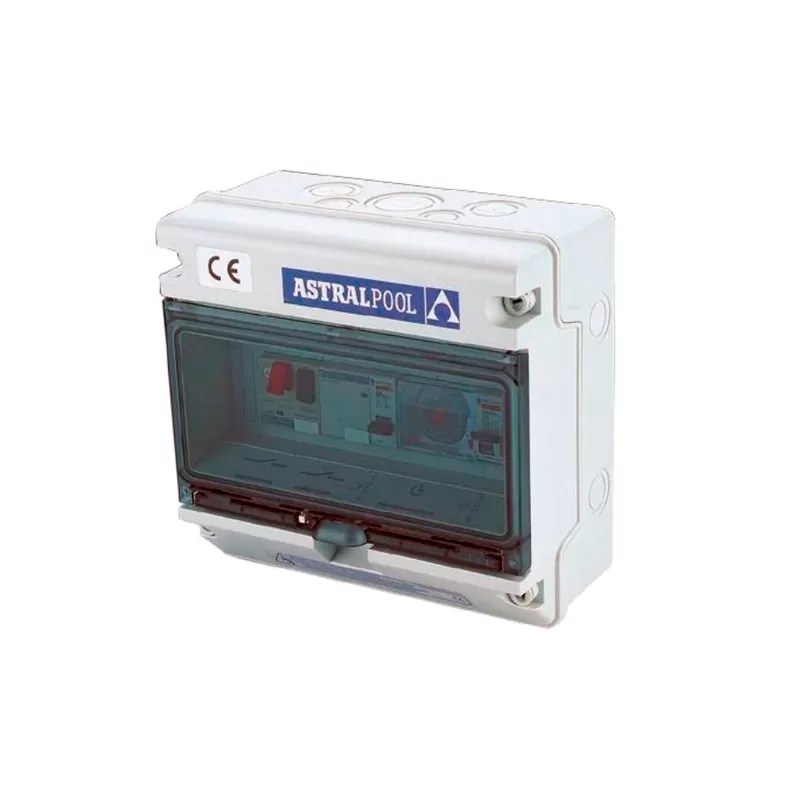

Swimming pool control panel for 1 pump 1,5 HP + light control

what type of pool is this panel suitable for?

• For pools with a 1.5 hp pump
• It allows you to set it in manual, off or automatic mode
• Clock timer
• Switch for spotlights
• TRANSFORMER NOT INCLUDED

Features Box 25724:

IP-65 protection. Transparent glass with lock and key. All products are compatible with:

- 220/240V 1-phase (P+N+T) 50Hz/60Hz

- 380/415V 3-phase (3P+N+T) 50Hz/60Hz

- 220/230V 3-phase (3P+T) 50Hz/60Hz

24H control clock with programming steps every ¼h. Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...). All products are delivered with:

• wiring diagram
• Connection diagram
• installation instructions
• CE conformity certificate
• cable gland for each cable entry and exit
• Screws and plugs (4) for wall mounting.

Electrical components of the panel:

Circuit breaker protection (1.6 to 10A) contactor, 24 h programming clock. 3 positions: Auto / 0 / manual. 12V 315VA. Protected output for underwater light.

Informative note:

Depending on the nominal current of the filtration pump, the type of cabinet must be selected
