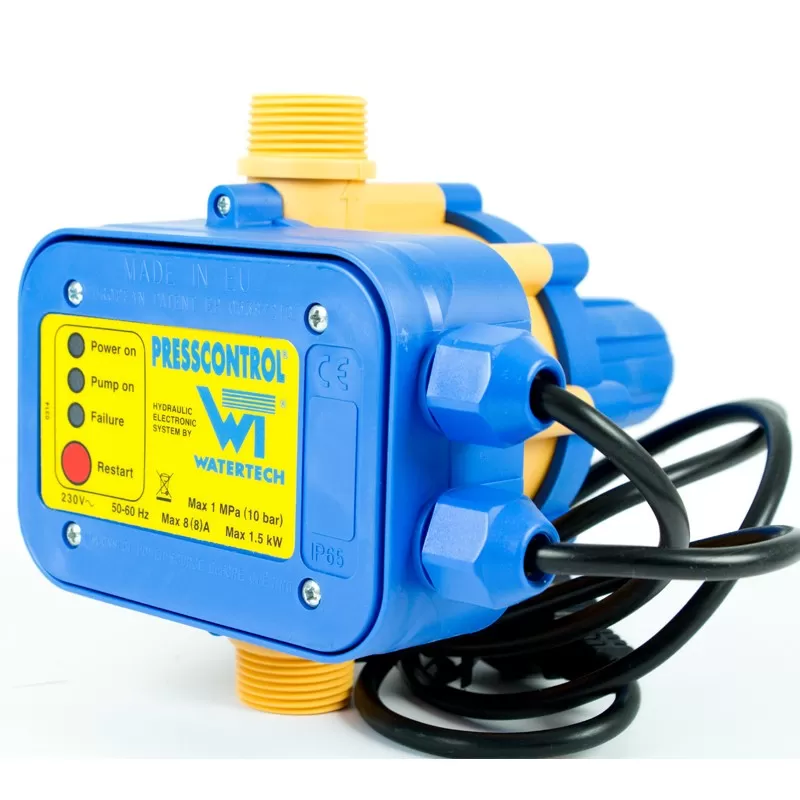

Pressure Controller Presscontrol

Pressure Controller Presscontrol

• Presscontrol is a device with a new concept for the control of pumps for domestic use.
• It is capable of simultaneously detecting pressure and flow as well as automatically managing the pump operation.
• It replaces the traditional expansion tank system, protecting the pump in the event of a water shortage.
• Much more compact than traditional systems, it is totally reliable, robust and easy to install.

Presscontrol features

• Switches the pump on and off depending on the opening or closing of the tap.
• Stops the pump in case of water shortage.
• Reduces and maintains constant pressure during use.
• Eliminates the effects of water hammer.
• Automatic stop in case of lack of water.
• Pressure regulator for pump automation.

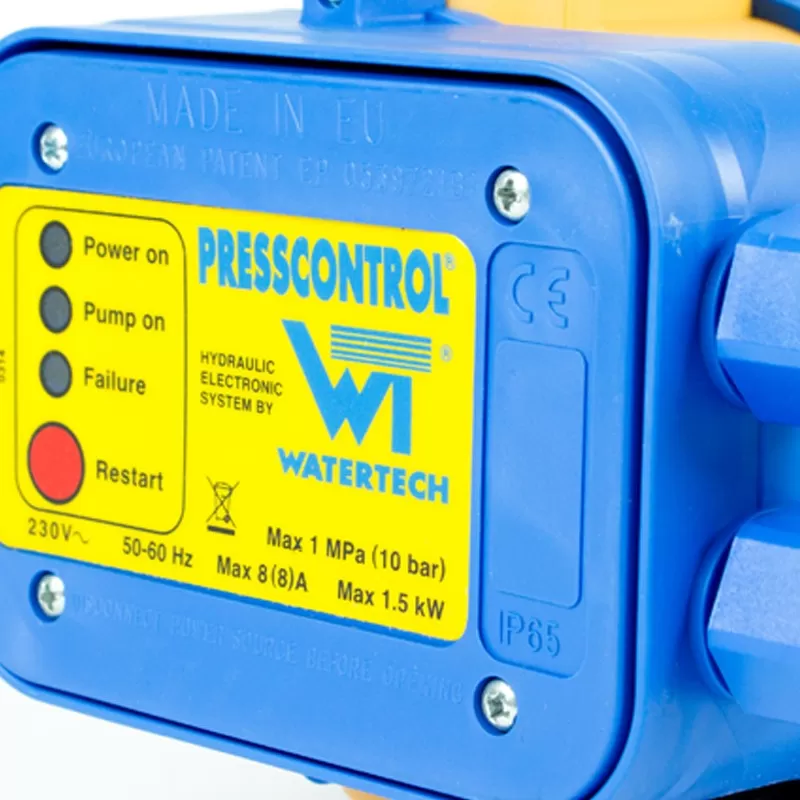

• Incorporates a check valve, voltage indicator, power indicator, alarm indicator and reset button.
• Starting pressure 1.5 Kg/cm2. Maximum pressure 10 Kg/cm2. Maximum intensity 10 Amp. Voltage 220 volt. single-phase.

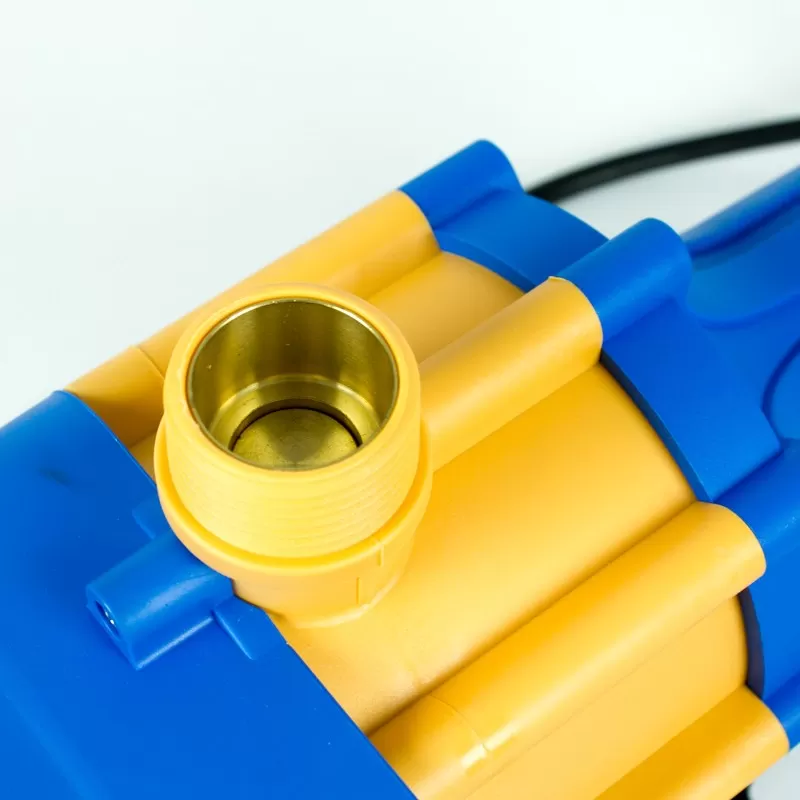

• Connection 1" male.
• Supplied with cable and plug.
• Single-phase supply voltage 230 V
• Acceptable voltage variations ± 10%
• frequency 50-60 Hz
• maximum current 8 (8) Un
• maximum power 1,5 kW (2 HP)
• It is capable of controlling a single-phase motor with a maximum power of 1.5 kW equivalent to 2 HP.
