Pressure switch Italtecnica PM-12
ref: 05GPAC1004225 ean13: 8032738640045 sku: PM 12
- Pressure switch (pressure switch) mod. PM-12
- Manufacturer ITALTECNICA
- Designed to work on hydropneumatic equipments
- Hydraulic connection 1/4 "F in galvanized steel.

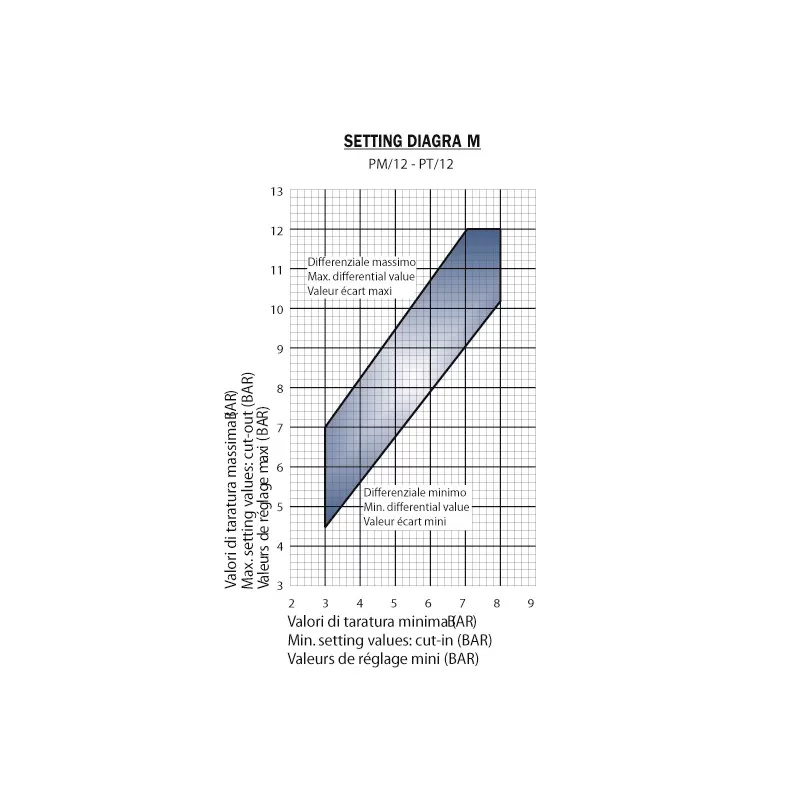

- Adjustment from 6-12 bar
- Electrical contacts: normally closed and made of brass alloy with Ag-Hi finish.
- Rated current 10 A
- NBR rubber diaphragm with textile insert.
€11.89
Free shipping
Technical characteristics
Pressure switch Italtecnica PM-12
- Pressure switches for use with water.
- The switch automatically adjusts the start and stop of the electric pump according to the set pressure values
- Electrical contacts normally closed brass alloy with Ag-Ni plating
- Terminals with M4 screws and 8x8 mm pressure sockets
- Hydraulic connection ¼ " in galvanised steel
- Standard degree of protection IP 44
- Maximum temperature 55°C
Data Sheet
- Product Type
- Mechanical Control
