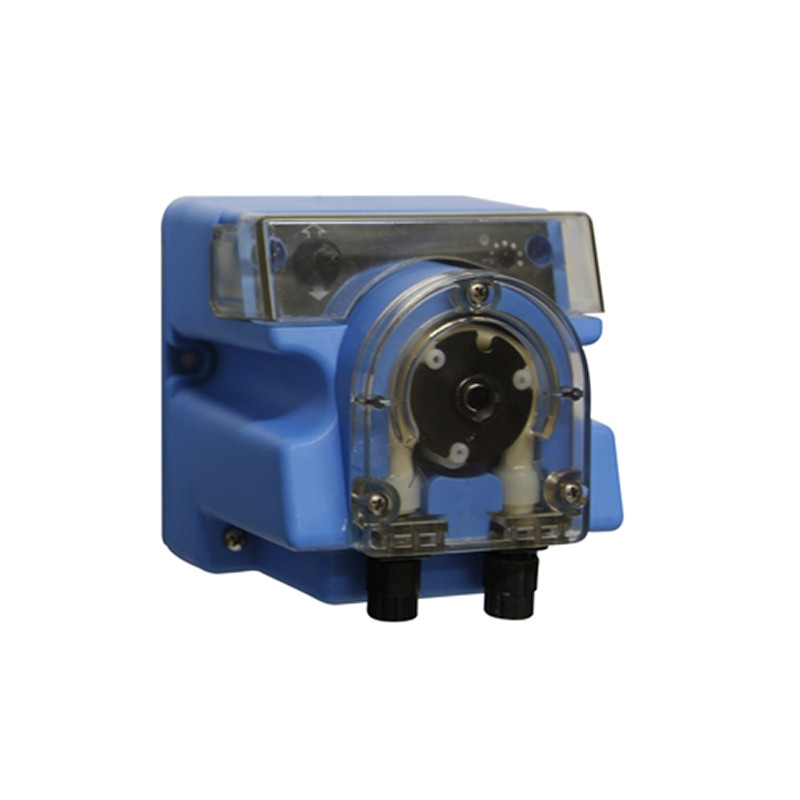

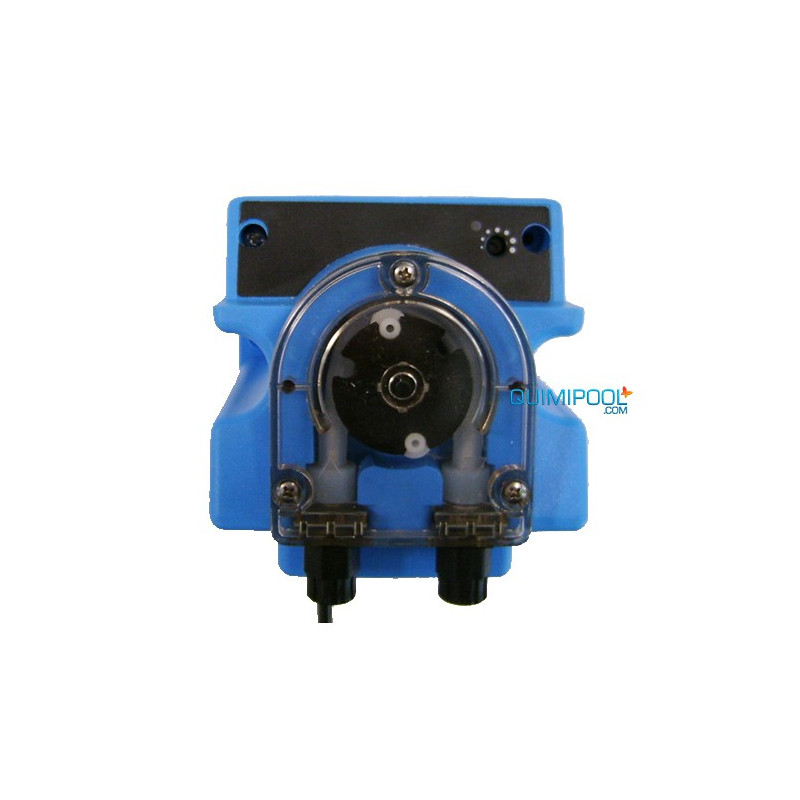

Peristaltic dosing pump Dosiper C 1R/P 4.5 l/h
ref: 05BDDOSIPERC sku: C1R/P
- Weighing pump Dosim.
- Model DOSIPER C1R.
- Flow rate up to 4.5 l/h regulated by speed variation.
- Designed for dosing sodium hypochlorite and acid in swimming pools.
- With NEOPRENE peristaltic tube.
- Easy and simple assembly.
€102.00
Free shipping
Technical characteristics
Dosiper peristaltic dosing pump
A peristaltic pump is a type of hydraulic pump used to pump a variety of fluids. The fluid is contained within a flexible tube inside a circular pump casing. A rotor with a number of rollers, shoes or wipers attached to the outer circumference compresses the tube. As the rotor turns, the part of the tube under compression closes forcing the pumped fluid to move through the tube. In addition as the tube is re-opened flow is induced into the pump, this process is known as peristalsis.
Features DOSIPER C 1R/P 4,5 l/h
- Adjustable flow rate: 4,5 lts/h.
- Maximum back pressure: 1,5 bar.
- Made of polypropylene.
- Peristaltic tube in NORPRENE.
- Power supply: 220 V.c.a. ±10%
- Filter.
- PVC-glass tube 5x7 mm. (4m).
- Plugs and screws for wall mounting.
Data Sheet
- Pump type
- Peristaltic
- Allows level control
- No
- Pump control
- Analogue
- Automatic control of
- No automatic control
