Metering pump Seko Tekna Evo AKS 603 (PVDF-T kit)

Dosing pump Seko

Metering pumps are a type of pump whose task is to inject a liquid (in swimming pools it is normal to inject a liquid reducing agent, ph increaser or liquid chlorine) into a fluid line. There are two types of dosing pumps: peristaltic pumps and diaphragm pumps. There are also models that allow you to control the parameter of the product you are dosing, i.e. control the pH level or control the chlorine level

Technical characteristics of the TEKNA EVO AKS 603 dosing pump.

• Flow rate manually adjustable by potentiometer on the front panel

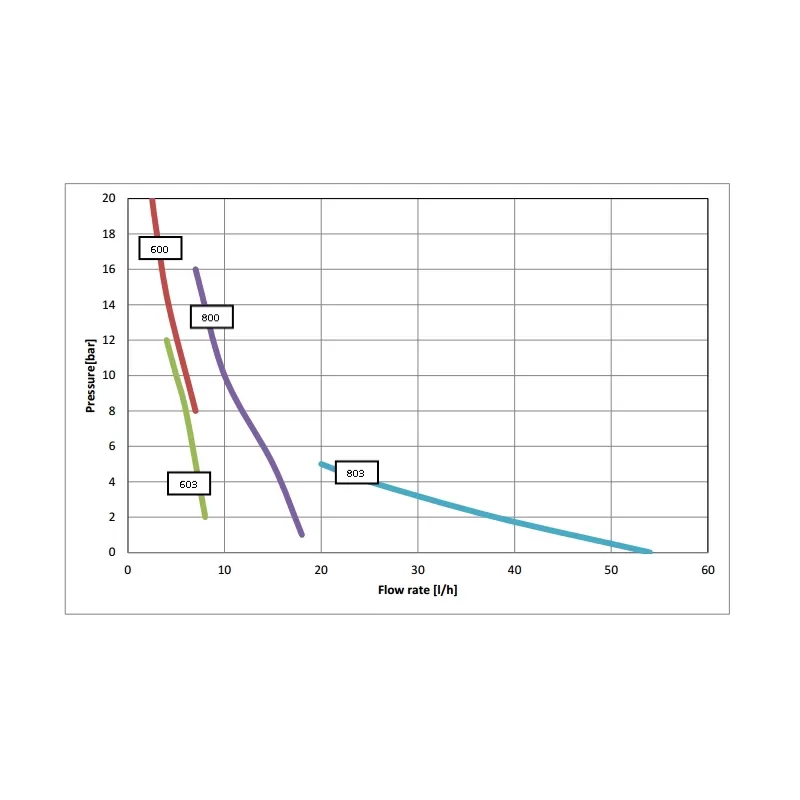

• Constant flow rate up to 8 l/h ( see table)

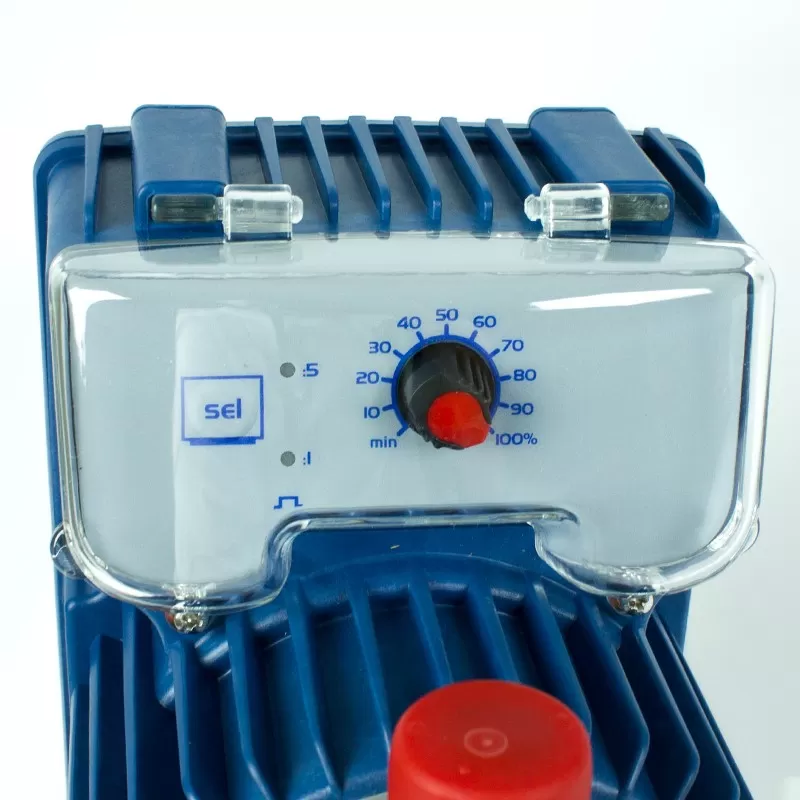

• Analogue control by potentiometer on the front panel
• Head (body and connection) made of PVDF
• PTFE membrane
• Installation kit in PVDF-T (injection valve, foot filter and support)
• PVC suction pipe
• PE delivery pipe
• Seals with viton valve

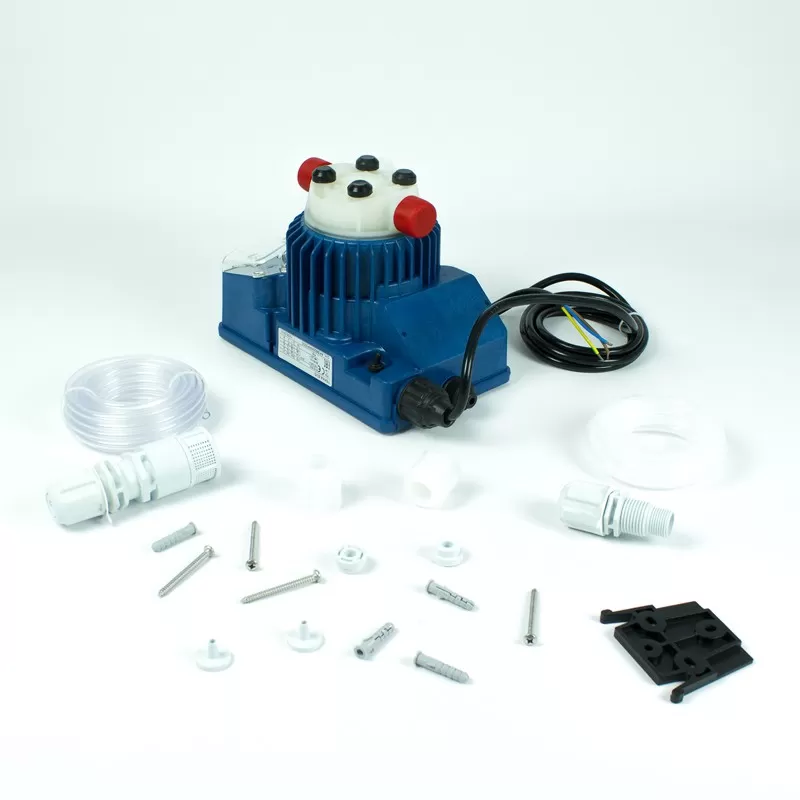

Contents of the box:

• Dosing pump Seko Tekna Evo AKS 603
• Standard power supply 100-240Vac, 50/60Hz
• Installation kit
