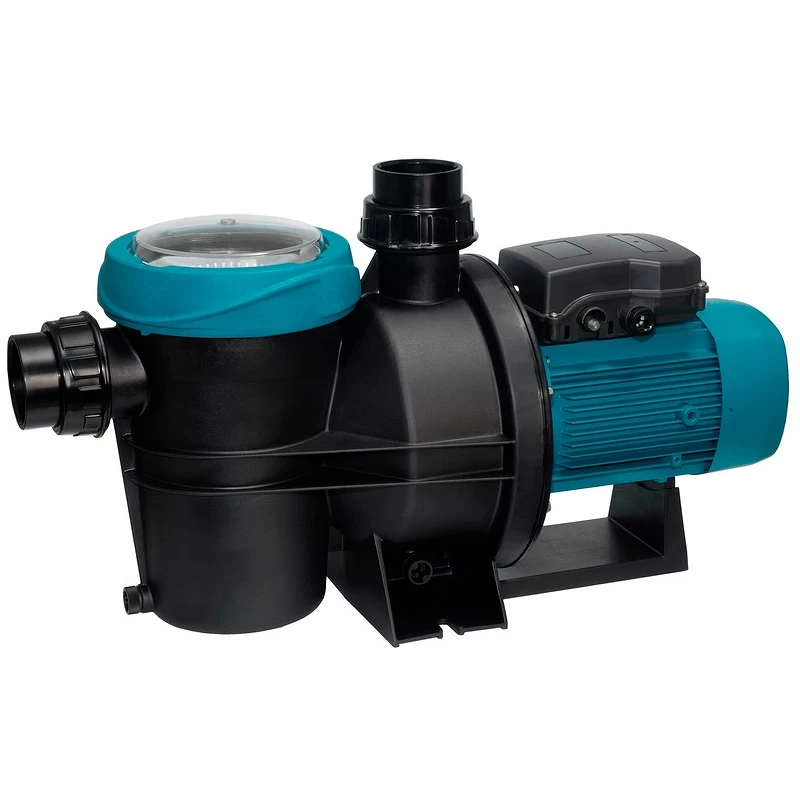

Swimming pool pump Espa Silen S2 100 24 Three-phase

Description Swimming pool pump Espa Silen S2 100 24

• This model replaces the model Espa Silen 2 100. Both models share the same dimensions and are therefore interchangeable.

• Swimming pool pump Espa Silen S2 100 24 1 HP THREE-PHASE.
• Very compact single-cell centrifugal pumps, with great suction power and designed for the recirculation of water in removable or in-ground swimming pool systems.
• Supplied with suction and delivery fittings for connection to filtration systems with 63 mm diameter pipes.
• Completely silent and continuous service, with built-in thermal protector, drain plug, pre-filter with transparent cover and anti-blockage lock.

Materials, motor and equipment

• Pump body, pump base, impeller, seal support and diffuser in technopolymer.
• Motor shaft in stainless steel AISI 431.
• Special mechanical seal in AISI 316.
• Aluminium motor casing. Seals in NBR.
• Bearings up to 160°C
• IP 55 protection, externally ventilated.
• Single-phase 1 x 230 V, with built-in thermo-amperometric protector and corresponding condenser.
• Condenser P2 of 10.000 hours.
• Supplied with suction and discharge connections for gluing Ø 63 mm.
