D.650 Series 92 swimming pool filter filter system
ref: 06FI01092003 ean13: 8410189002917 sku: 1092003
- Pool Filter Series 92
- Manufacturer: Coral
- Code: 01092003
- Diameter: 650 mm
- Material: high resistance laminated polyester in metallic colour
- Includes 6-way selector valve of 1" 1/2
- Includes pressure gauge, drain plug and ABS cap
- Stabilising base
€495.00
Free shipping
Technical characteristics

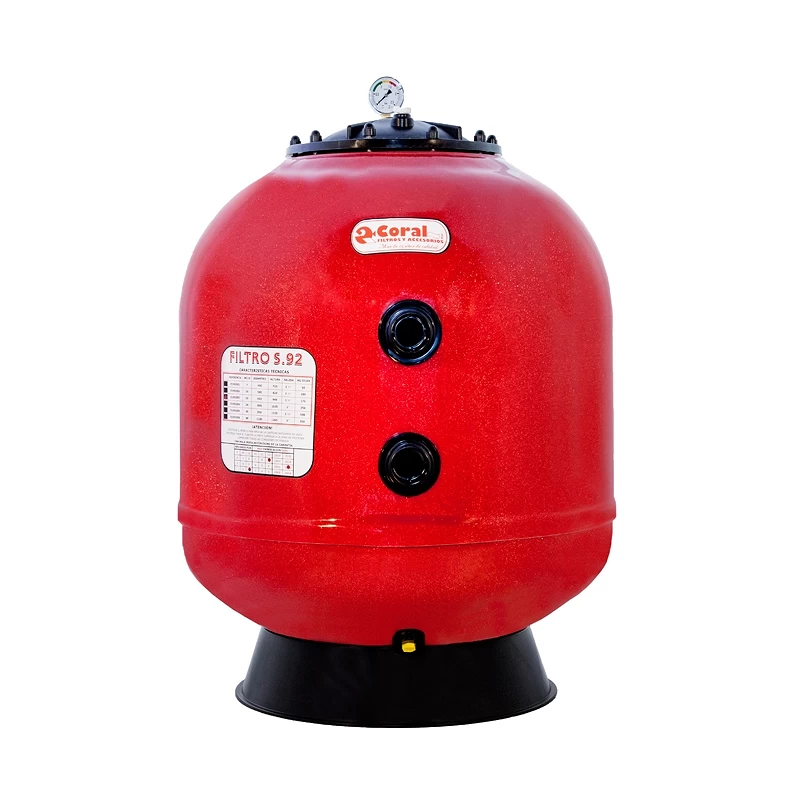

Swimming pool filter Coral Series 92 diameter 650 mm
The filter Coral Series 92 is a high resistance polyester laminated filter in metallic colour.
It includes all the elements for a correct functioning of the filtration system. It incorporates in the upper part a pressure gauge and a matt black ABS cover with screws. In the lower part it has a drain plug, as well as a stabilisation base.
It is supplied with a 6-way selector valve of 1" 1/2.
MAIN CHARACTERISTICS
- Diameter: 650 mm
- Filtration capacity: 15.000 l/h
- Filtration speed: 50 m3/h
- Maximum working pressure: 2.5 kg/cm2
- Sand load: 175 kg
- Glass load: 141 kg
- Crepinas: 8 units of 140 and 200 mm (4 of each)
Top cover with screws

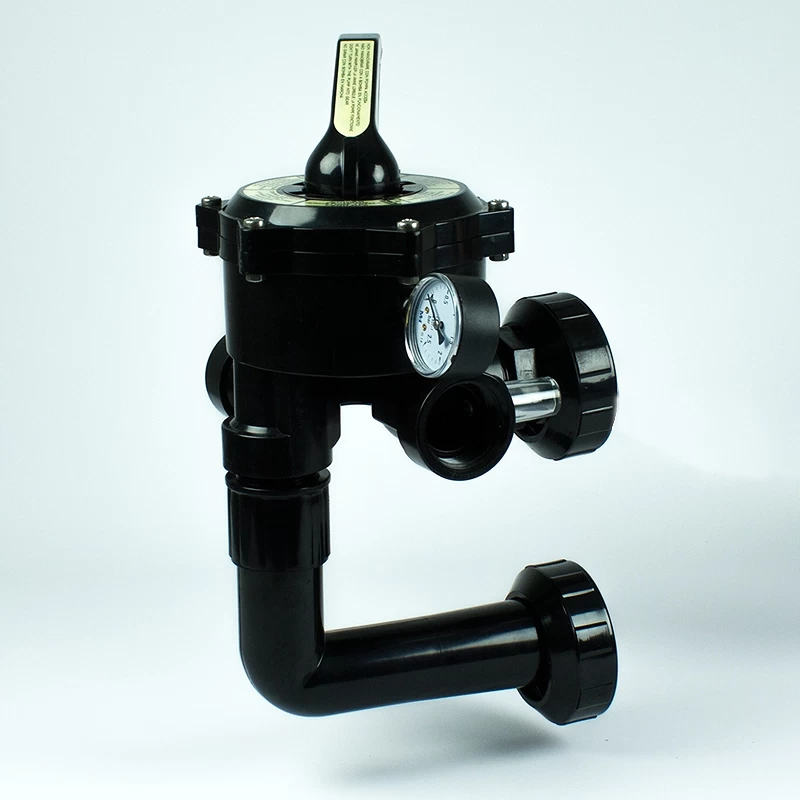

6-way selector valve 1" 1/2
Pressure gauge
Product manufactured at España
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.
Commissioning
Once the sand filter has been filled (see manual), proceed as follows:
1. Open the valves on the suction pipes leading to the pool (skimmer and drain).
2. Turn the selector valve to the RINSE position.
3. Switch on the pump for 5 minutes.
4. Stop the pump and switch the selector valve to the RINSE position.
5. Reconnect the pump for 1 minute.
6. Stop the pump and switch the selector valve to the FILTRATION position.
The filter is now ready for operation.
Functions of the selector valve
 | | | | | | |
| 92 400 SERIES | 92 500 SERIES | 92 650 SERIES | 92 800 SERIES | 92 950 SERIES | SERIES 92 1100 | |
| Diameter (mm) | 400 | 500 | 650 | 800 | 950 | 1100 |

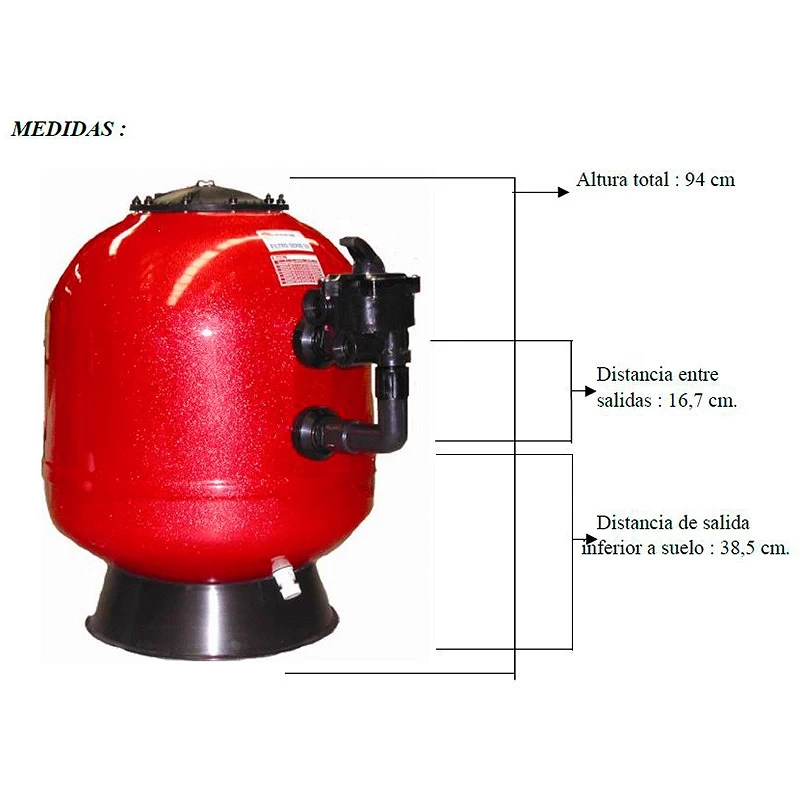

| Height (mm) | 720 | 820 | 940 | 1020 | 1120 | 1260 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" 1/2 | 3" |
| Flow rate (m3/h) | 7 | 10 | 15 | 24 | 35 | 48 |
| Sand load (kg) | 65 | 100 | 175 | 350 | 500 | 850 |
| Filtration surface (m2) | 0,18 | 0,22 | 0,30 | 0,50 | 0,68 | 0,86 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years 2 years |
Data Sheet
- Recommended pool size
- 80-120 m3
- Filter diameter
- 650 mm
- For pumps
- 0.75 HP - 1 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 150 - 200 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
