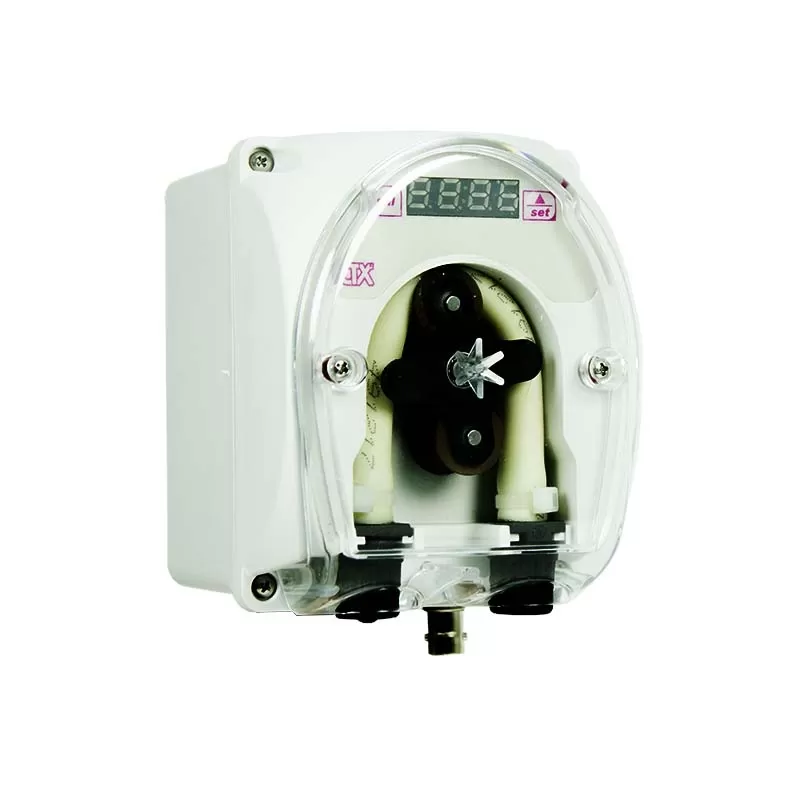

Peristaltic pH Regulator Pump CTX E-Series
ref: 05BD68264 ean13: 8435283995200 sku: 68264
- Peristaltic pump CTX E-Series.
- Flow rate 1.5 l/h at 1.5 bar.
- PH measurement range: 6 to 8 (sensitivity 0.1).
- Includes electrode with pH7 standard solution.
- Includes a collar. Requires another collar for installation.
€245.00
Free shipping
Bought together Usually
Actual product
Items: 1
Total price: €245.00
Technical characteristics
PH peristaltic pump CTX E-Series
A peristaltic pump is a type of hydraulic pump used to pump a variety of fluids. The fluid is contained within a flexible tube inside a circular pump casing. A rotor with a number of rollers, shoes or wipers attached to the outer circumference compresses the tube. As the rotor turns, the part of the tube under compression closes forcing the pumped fluid to move through the tube. In addition as the tube is re-opened flow is induced into the pump, this process is known as peristalsis.
The pH is the parameter that measures the acidity or alkalinity of water. Alkaline water is water with a pH higher than 7.6 and acidic water is water with a pH lower than 7.2, the recommended values being between 7.2 and 7.6. Higher or lower values can reduce the effectiveness of chemical treatments.
Features CTX E-Series
- Flow rate 1.5 l/h at 1.5 bar.
- PH measurement range: 6 to 8 (sensitivity 0.1).
- Power supply: 90/265 VAC.
- 4-digit 7-segment display.
- BNC connector for pH electrode.
- 3-position switch: priming, ON and stand by.
- Dosing method: ON-OFF (adjustable set point).
- 1-point pH calibration method.
- Equipment warranty: 2 years. Incorrect positioning of the pH probe invalidates the warranty. The probe is a consumable not covered by the warranty, so it will be the manufacturer who will determine in each case whether or not the warranty is applicable.

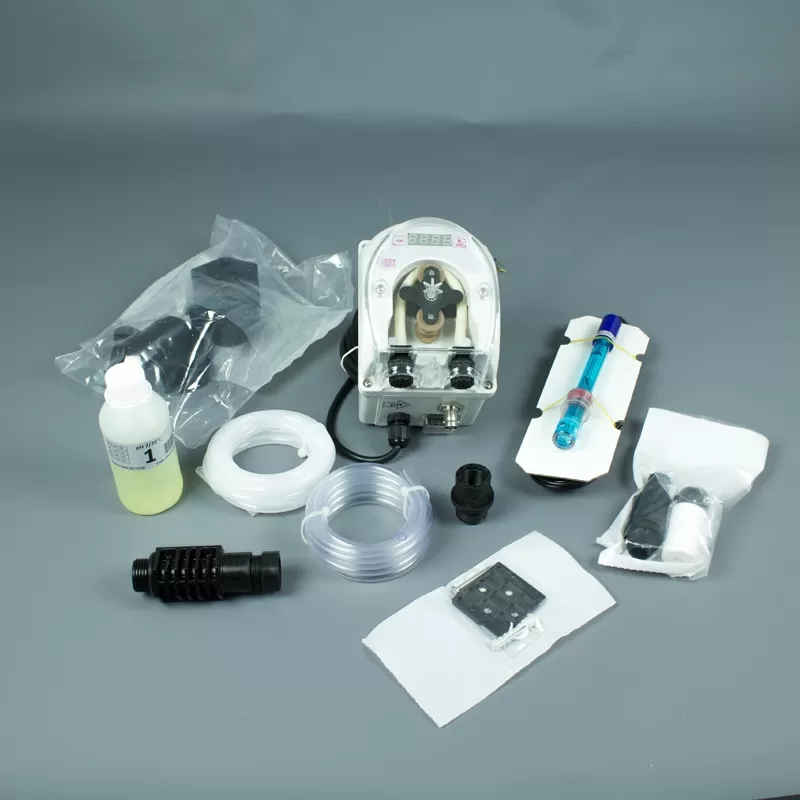

Included in the kit
- Peristaltic pump CTX E-Series
- PH electrode with pH7 standard solution
- HDPE tube 4x6 mm for delivery (3 m).
- PVC glass tube 4x6 mm for suction (2 m).
- Foot valve (PVC).
- Injection valve (lip) FPM (3/8" GAS).
- Electrode holder.
- Collar DN50. Another collar is required for installation.
Data Sheet
- Pump type
- Peristaltic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- pH
