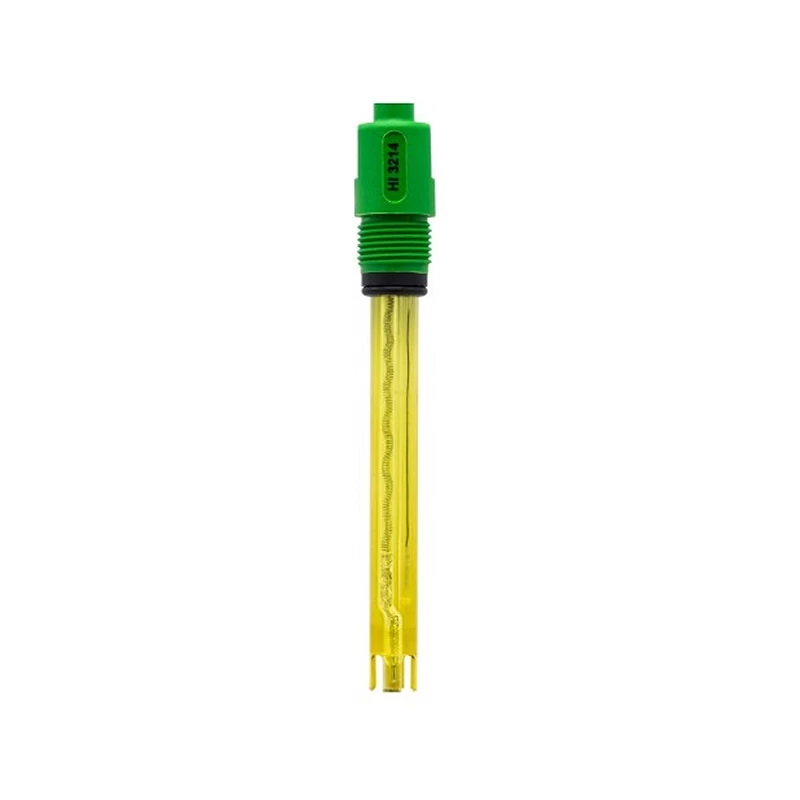

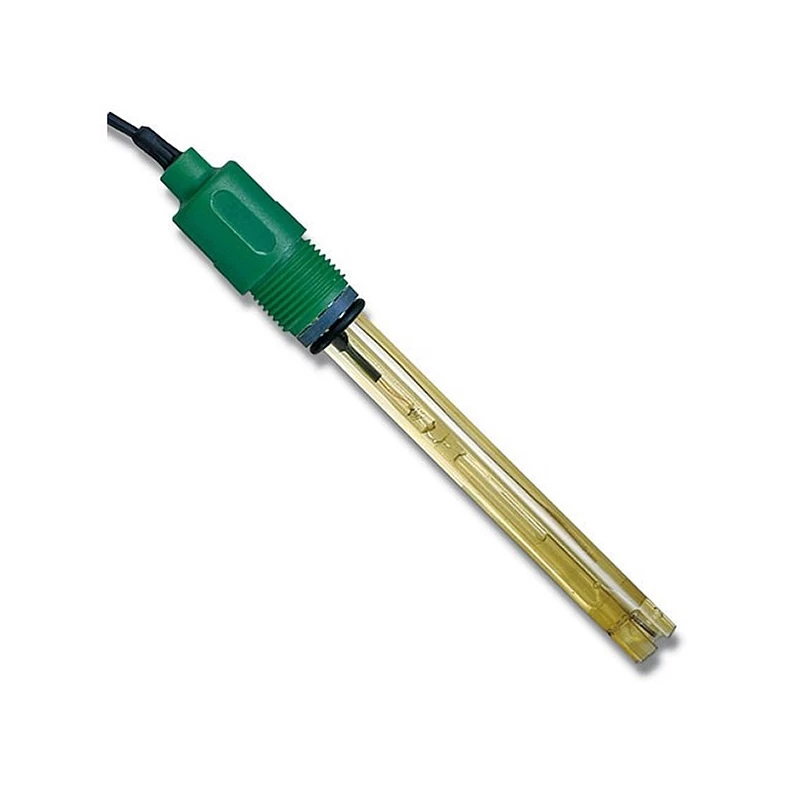

2 metre ORP electrode Hanna HI3214P

2 metre ORP electrode Hanna HI3214P

Redox measurements are carried out by a chemical reaction that produces an electrical potential which is read by a special sensor called an electrode.

The electrodes are active elements of limited duration and must be periodically calibrated with known solutions (buffer solutions, in this case the Redox 460 mV solution is usually used). These electrodes are of the combined type (Measurement + Reference) and are classified according to their chemical and physical properties that make them suitable for multiple applications.

Recommendations for use and maintenance(see document)

The following elements should be considered when choosing an electrode:

• Measuring range.
• Temperature.
• Pressure chemical substances present in the process.
• Type of mounting in the system.

Characteristics of the pH electrode Hanna HI2114P

• ORP measuring range: +/-2000 mV.
• Type of junction: fibre.
• Electrolyte type: gel.
• Body material: PEI.
• Tip/shape: platinum pin.
• Maximum pressure: 3 bar.
• Temperature Operating Range: 0 to 80ºC.
• External diameter: 12 mm.
• Total length: 122 mm.
• Coaxial cable.
