Filtro depuradora para piscinas Neptuno 600
Filtro depuradora para piscinas Neptuno 600 Filtro depuradora para piscinas Neptuno 600 Filtro depuradora para piscinas Neptuno 600 Filtro depuradora para piscinas Neptuno 600 Filtro depuradora para piscinas Neptuno 600

Neptuno 600 swimming pool filter filter system

ref: 06FI01099004 ean13: 8410189009770 sku: 540063
  • Neptune Series Pool Filter
  • Manufacturer: Coral
  • Code 01099004
  • Diameter: 600 mm
  • Material: high density injected polypropylene
  • Transparent screw-on cover
  • INCLUDING 6-WAY SELECTOR VALVE 1" 1/2
  • Easy to view pressure gauge
€269.00
Free shipping
Free Shipping + info

Technical characteristics

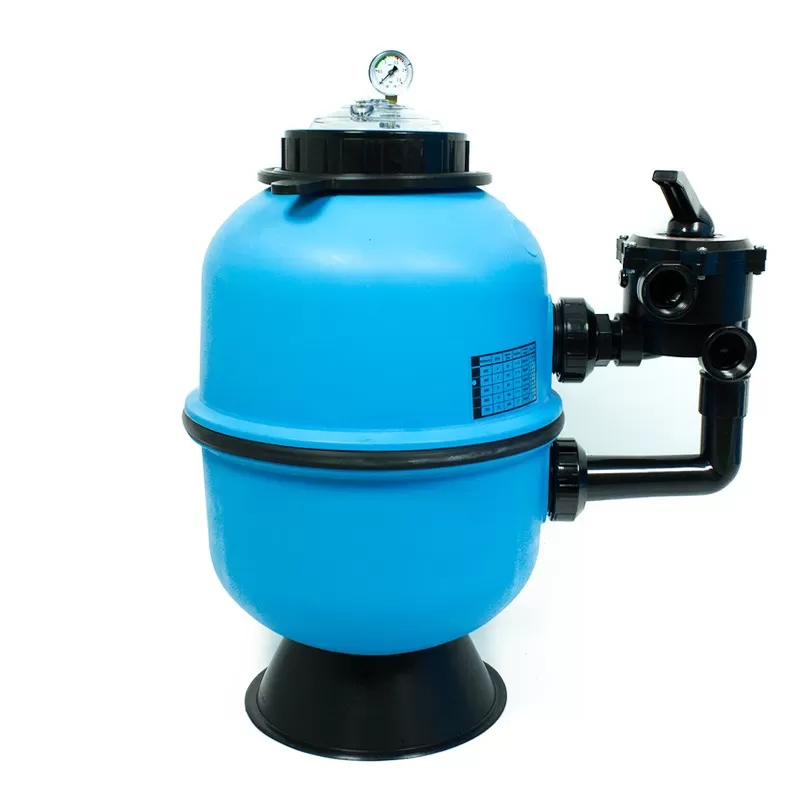

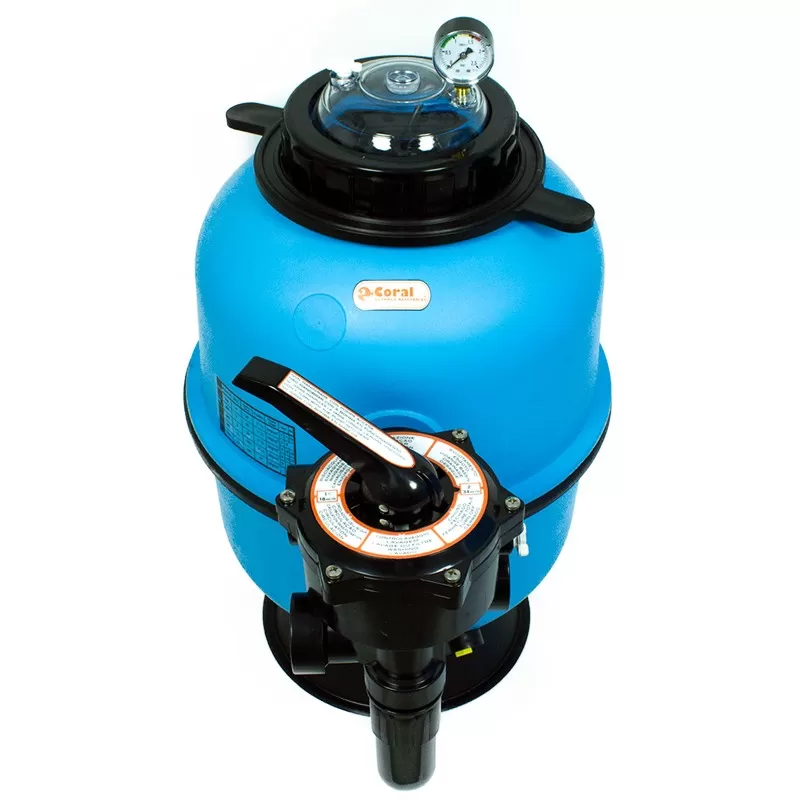

Swimming pool filter Coral Neptuno 600

The Neptuno filter is injected in high-density polypropylene for greater resistance over time.

It includes all the elements for the correct functioning of the filtration system.

MAIN CHARACTERISTICS

  • Diameter: 600 mm
  • Filtration capacity: 13.000 l/h
  • Filtration speed: 50 m3/h
  • Maximum working pressure: 2,5 kg/cm2
  • Sand load: 150 kg
  • Glass load: 135 kg

Screw-on top cover

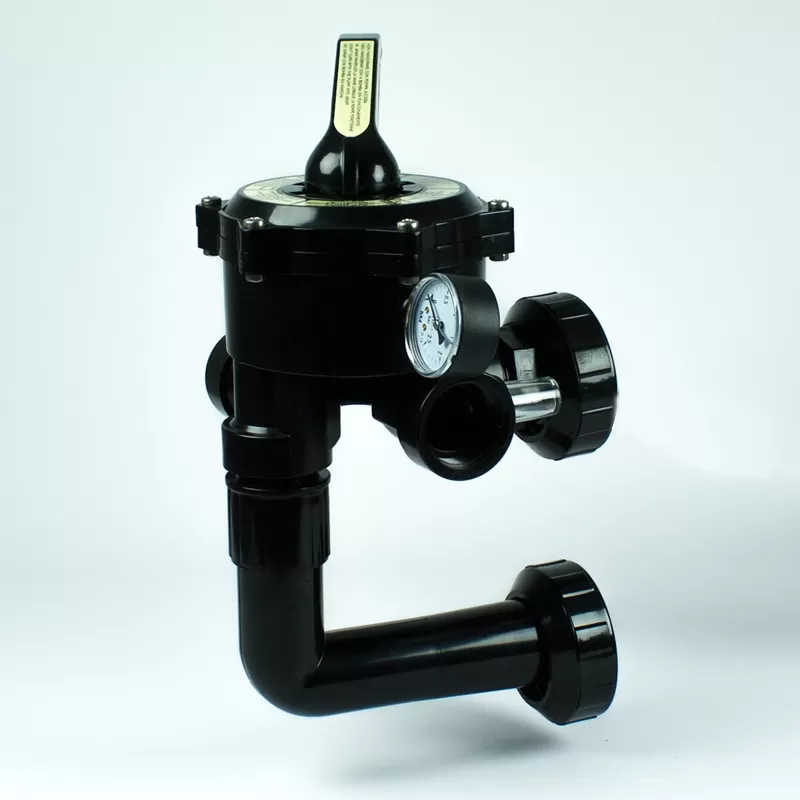

6-way selector valve 1" 1/2

Pressure gauge

Product manufactured at España

what is leakage?

Filtration is one of the most important tasks when cleaning and disinfecting our pool.

Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.

When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.

In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming.

Commissioning

Once the sand filter has been filled (see manual), proceed as follows:

1. Open the valves on the suction pipes leading to the pool (skimmer and drain).

2. Turn the selector valve to the RINSE position.

3. Switch on the pump for 5 minutes.

4. Stop the pump and switch the selector valve to the RINSE position.

5. Reconnect the pump for 1 minute.

6. Stop the pump and switch the selector valve to the FILTRATION position.

The filter is now ready for operation.

Functions of the selector valve

Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300 Filtro depuradora para piscinas Neptuno 300
NEPTUNE 300 NEPTUNE 400 NEPTUNE 500 NEPTUNE 600
Diameter (mm) 300 400 500 600

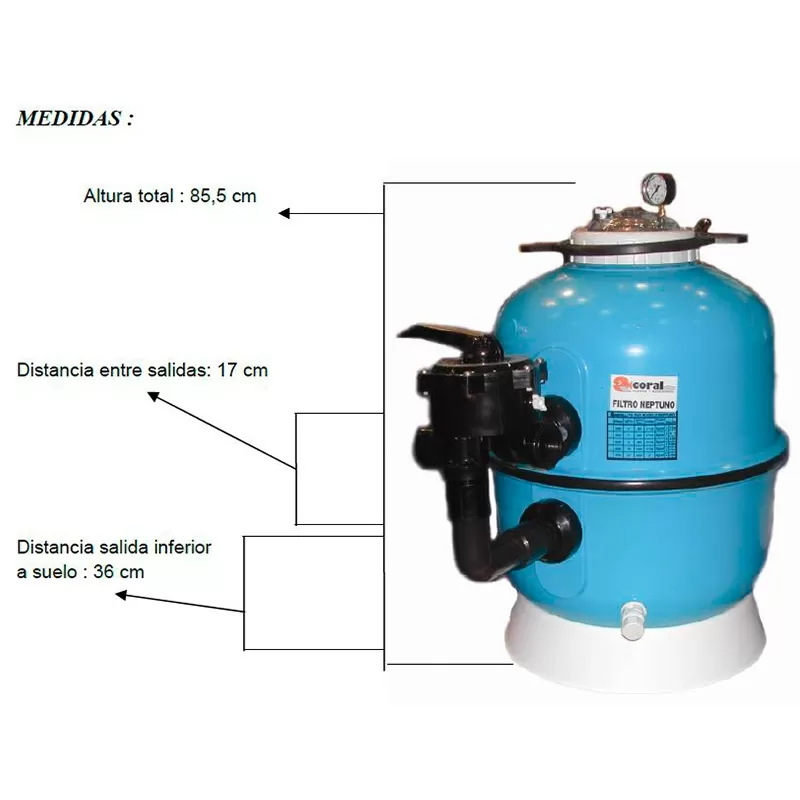

Height (mm) 535 635 725 855
Connections 1" 1/2 1" 1/2 1" 1/2 1" 1/2
Flow rate (m3/h) 4 7 10 14
Sand load (kg) 30 60 100 150
Filtration surface (m2) 0,10 0,14 0,20 0,28
GUARANTEE 2 years 2 years 2 years 2 years

Data Sheet

Recommended pool size
50-80 m3
Filter diameter
600 mm
For pumps
0.75 HP - 1 HP
Valve
1 1/2" side
Sand load (kg)
100 - 150 kg
Material
Injected plastic
Type of filtration
Sand
